Edcor PC600/10K
Category
Manufacturer
Item no.
- PC60010K
Product weight
- 0,15 kg
Shipping weight
- 0,15 kg

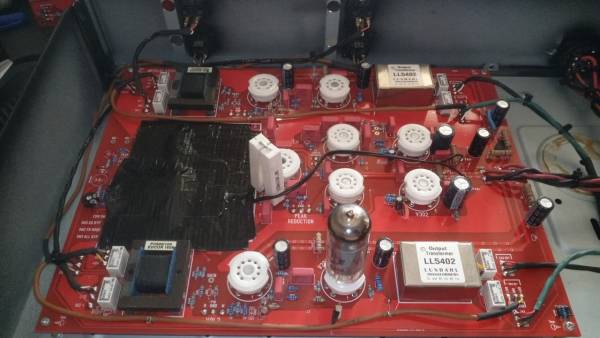

Application
Compliance
Interesting items
Description
1/4W 600 Ohms to 10K Ohms line level matching transformer.
| Schematic |  |
| Wattage | 0.25W |
| Input Maximum Voltage | 5Vrms |
| Turns Ratio | 1:1 |
| Primary (input) Impedance | 600 Ohms |
| Secondary (output) Impedance | 10K Ohms |
| Frequency Response | 20~20K Hz., <1dBu |
| THD+Noise | <0.05% @ 1K Hz. |
| Insertion Loss | 0.5 dB |
| Bobbin Material | Glass Filled Nylon 6/6 |
| Flamability Rating | Class B 130°C |
| Core Material | M6 29 ga. line grain oriented steel |
| Termination | 8 pin PCB |
| Mounting | Printed circuit board mounted (PCB) |
| Weight | 0.2 lbs. |
| Dimensions | 1.62" (L) x 1.33" (W) x 0.64" (H) |
| Dimensional Drawing |
 15000-EI050-025-P08
|
| Manual |
PC Series Manual
|
