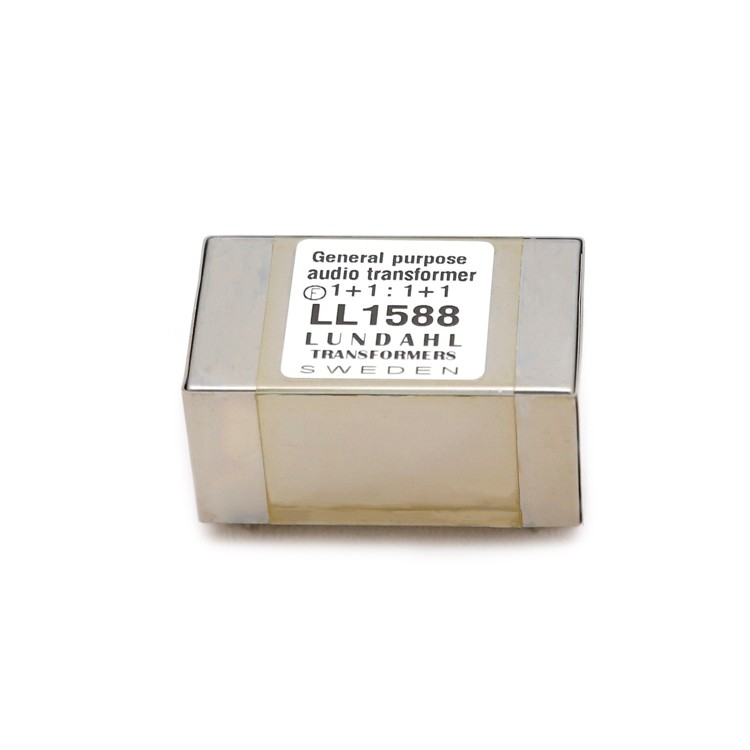

Lundahl LL1588 General purpose audio transformer

112,90 €
(94,87 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 5 days
  • Shipping time: 6 - 7 workdays
Order Now
Category
Manufacturer
Item no.
  • LL1588
Product weight
  • 0,12 kg
Shipping weight
  • 0,10 kg
Application
Compliance

Description

Ratio: 1+1 : 1+1
LL1588 is a high - level general - purpose transformer which can be used for microphone or line input, for line output and for galvanic isolation. The windings are arranged to give perfect symmetry if the transfo rmer is used in phase splitting input applications. The two coils structure also greatly improves immunity to external magnetic fields from e.g. power supplies and motors. Primary and secondary windings are separated by electrostatic shields. The core is a high permeability mu metal core. The transformer is housed in a mu - metal can.
Question on item

Privacy policy

Notify me when this product is available

Notify me when this product is available

* Mandatory fields

Customer-Pics

Log in to upload a pic!

At moment there are no customer pics for this product.

Product Tags

Ratings from users

  • 5 Stars: 100% (2)
  • 4 Stars: 0% (0)
  • 3 Stars: 0% (0)
  • 2 Stars: 0% (0)
  • 1 Star: 0% (0)
Average product review: Average Rating: 5/55

(This product has got 2 Reviews)

Share your experience with other customers
More product reviews
  1. Average Rating: 5/55 Alain B. Wrote at 12.03.2023
    Good transformers for interconnect.
    LL1588/LL1592/LL1590 are good transformers for audio signal, which can be used in high-end audio system.
    I used these transformers for galvanic isolation and filtering like Jeff Rowland.
    Distortion is extremely low and Lundahl is a serious supplier for such items.

    Transformers are still limited to low frequencies.
    These three transformers support about 7Vrms at 20Hz without visible distortion on a sinusoidal signal.

    For the perfectionist guys, I suggest adding an RC element to have flat bandwidth and good transient response, and maybe a series capacitor as well.

    The question remains: mu-metal core or cobalt-based core?
    Mu-metal seems safer...
  2. Average Rating: 5/55 Steven W. Wrote at 28.12.2021
    Received promptly
    Distributors in the USA were not responding to request to purchase Lundahl 1588 transformers. Found that DonAudio had them and I received them in a couple weeks. Cant ask for more!
