The windings are arranged for perfect symmetry if the transformer is used in phase splitting input applications. The two coils structure also greatly improves immunity to external magnetic fields from e.g. power supplies. Primary and secondary windings are separated by electrostatic shields. The transformer is housed in a mu-metal can.
Turns ratio: 1 + 1 : 1 + 1

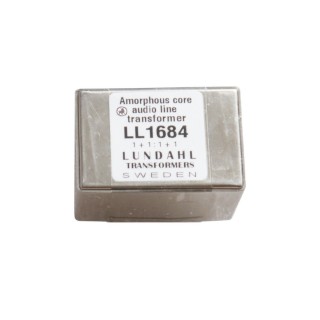

LL1684 is a high-level, general-purpose, amorphous core transformer which can be used for microphone or line input, for line output and for galvanic isolation. The windings are arranged to give perfect symmetry if the transformer is used in phase splitting input applications. The two coils structure also greatly improves immunity to external magnetic fields from e.g. power supplies and motors. Primary and secondary windings are separated by electrostatic shields.. The transformer is housed in a mu-metal can.
Dimensions (L x W x H above PCB, in mm): 42 x 28 x 22
Spacing between pins 5.08 mm (0.2")
Spacing between rows of pins 30.5 mm (1.2")
Rec. PCB hole diameter: 1.5 mm
Weight: 81 g
Static resistance of each primary: 41ohms
Static resistance of each secondary: 41ohms
Distortion (primaries connected in series, source impedance 150W ): + 23 dBU 0.1% @ 50 Hz + 25 dBU < 1 % @ 50 Hz
Distortion (primaries connected in parallel, source impedance 150W ): + 16 dBU 0.1% @ 50 Hz + 19 dBU < 1 % @ 50 Hz
Self resonance point: > 250 kHz
Frequency response (source 150W, load 10 kW, serial connection): 10 Hz -- 100 kHz +/- 1.0 dB
Phase response (deviation from linear phase) 20 Hz – 20kHz, +/- 0.5°
Suggested load for best square wave response: 10k // 1k + 3nF
Isolation between windings/ between windings and shield: 3 kV / 1.5 kV
