Lundahl LL1570
Category
Manufacturer
Item no.
- LL1570
Product weight
- 0,40 kg
Shipping weight
- 0,40 kg
Application
Compliance
Description
Splitting 1 direct + 1 isolated outputs.
Extra wide bandwidth.
Microphone input (200 : 800 ohms)
Extra wide bandwidth.
Microphone input (200 : 800 ohms)

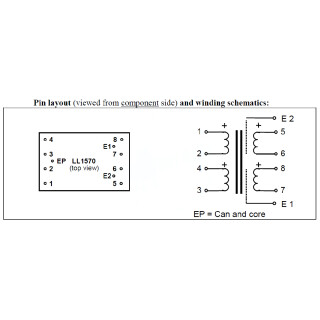

The LL1570 is a very high quality general purpose audio transformer for low turns ratio mic input, for ground isolation, balanced-to-unbalanced conversion and for splitting 1:1+1. By careful design, the capacitive coupling between the different parts of the transformer is kept to a minimum. The three-section winding structure used in the LL1570 results in a very high bandwidth. The transformer is built up from two coils, each with primary and secondary windings separated by electrostatic shields, and a high permeability mu-metal core.
Dimensions (Max. L x W x H above PCB(mm)): 38 x 24 x 17
Weight: 48 g
Frequency response (source 600W, load as above, serial-serial connections): 10 Hz -- 200 kHz +/- 0.5 dB
Self resonance point : > 250 kHz
