Lundahl LL1527XL Audio transformer

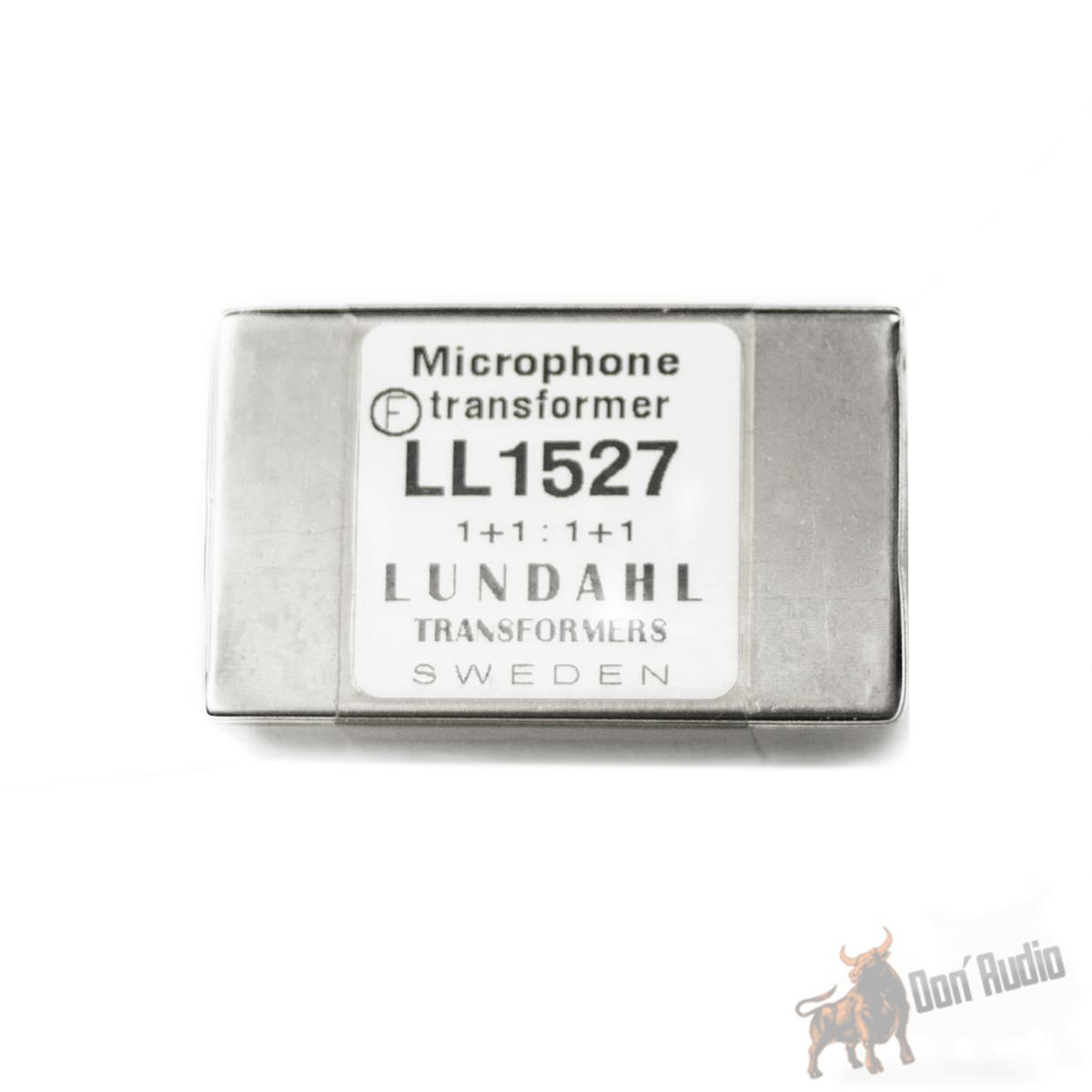

Lundahl LL1527 Audio Transformer
Category
Manufacturer
Item no.
- LL1527
Product weight
- 0,01 kg
Shipping weight
- 0,10 kg
Application
Compliance
Interesting items
Description

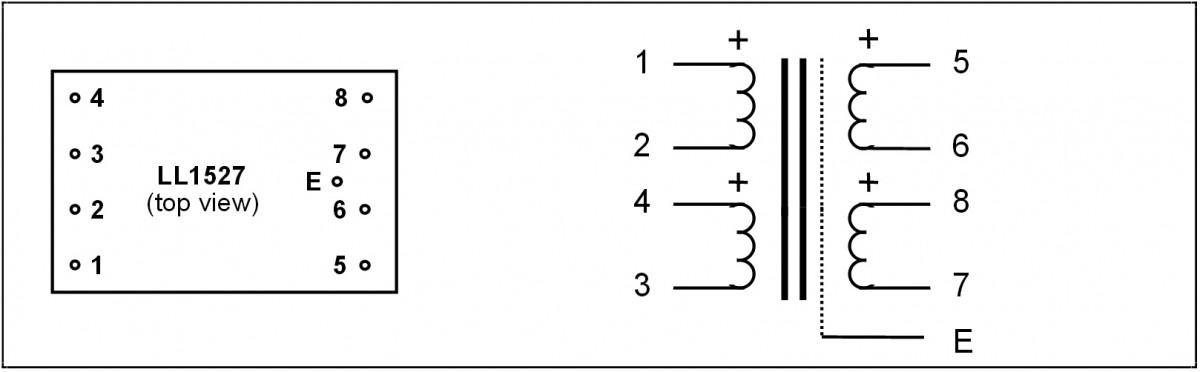

Turns ratio: 1 + 1 : 1 + 1

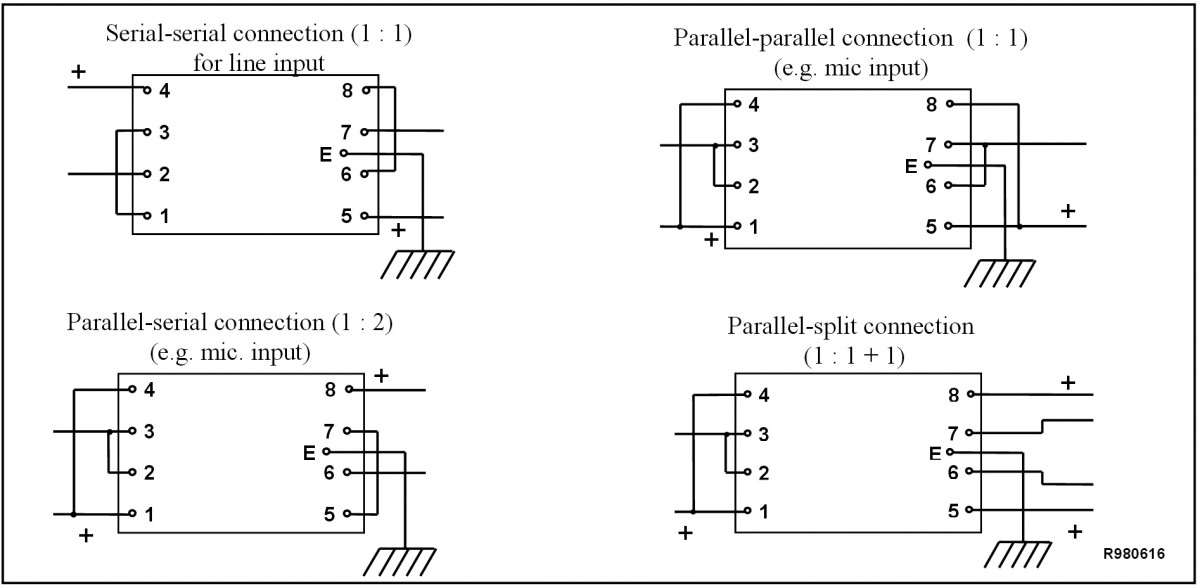

LL1527 is a truly general purpose transformer for microphone or line input, for output and for galvanic isolation of units. LL1527 has been generally accepted by the audio industry as the general purpose audio transformer. The LL1527 is built-up from two coils, each with one primary and one secondary winding separated by an electrostatic shield. The core is a high permeability mu metal core. The transformer is housed in a mu-metal can. In the LL1527XL, the core is about 45% larger than in the LL1527, resulting in a larger level capability. Turns ratio: 1 + 1 : 1 + 1
