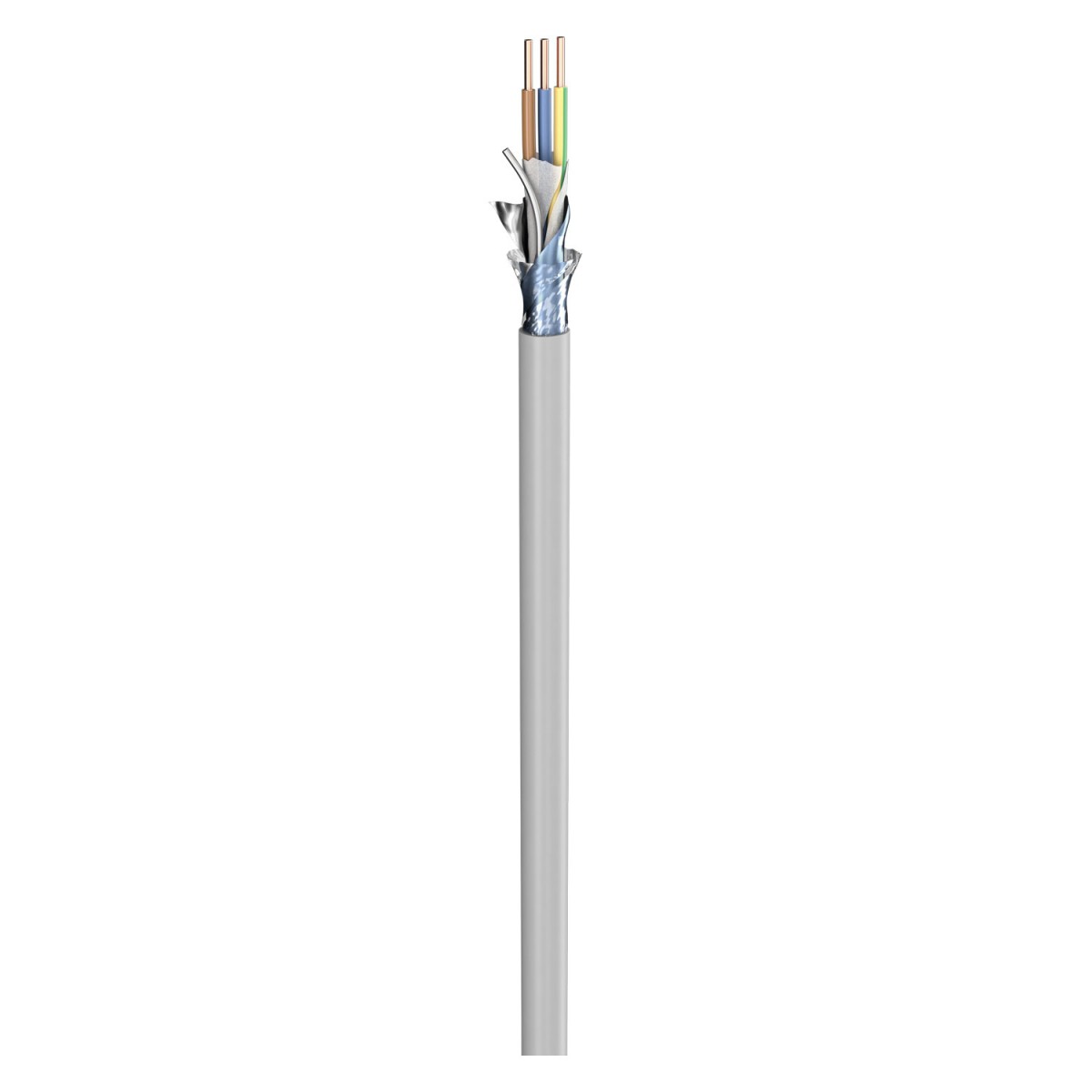

Sommercable power cable (N)YM-(ST)-J, 3 x 1,50 mm2, PVC, flame retardant, 9,20mm diameter, grey

You can rely on the NYM’s shielding...
For it protects not only against rain, but with this cable also from electromagnetic interference fields. Which is important in hospitals, server and computer areas and in every demanding studio as well as any radiation-sensitive living zones. The shielded {NAME cable with protective conductor is suitable for all indoor and outdoor installations (on, in and under plaster) insofar as these are not exposed to direct sunlight. The wires are color-coded pursuant to VDE 0293 and stranded in layers, with a tin-plated 1.5 mm² (0.002 sq in.) drain wire. The cables comply with the EC low voltage directive EWG93/68/ or EWG73/23.

Advantages:

• EMC shielding against electromagnetic interfering signals
• Complies with the VDE 0250, VDE 0482-332-1-2 / IEC 60332-1 standards and other requirements

Application:

• For all installations – especially in sensitive locations like e.g. hospitals, server rooms, studios
• For surface and flush mounting as well as wet rooms

Specification:

Article number 720-0056-03015
Name (N)YM-(ST)-J
EAN 4049371051804
Properties OFC oxygen free copper
Properties Analog
Application area ELA 100 V
Application area Installation
Application Power Lead
Colour grey
Colour detailed grey
Construction (N)YM-(ST)-J
Jacket material PVC, flame-retardant
Jacket material (power) PVC, flame retardant and self-extinguishing
Jacket Ø [mm] 9,20
Number of Channels (power) 1
Inner conductor (power) 3
Inner conductor (power) [mm²] 1,50
Inner conductor Ø (power) [mm] 1,38
AWG (power) 15
Shielding AL / PT-foil + Tinned drain wire
Copper strands (power) 1
Copper strand Ø (power) [mm] 1,38
Conductor insulation material PVC
Weight per 1 m [g] 142
Style variant round
Packing bulk stock
Temperature min. [°C] -40
Temperature max. [°C] 70
Width [mm] 9,2
Height [mm] 9,2
Insulation resist. per 1 km [GΩ] 0,02
Insulation resist. per 1000 feet [GΩ] 0,0061
Insulation resist. per 1km (power) [GΩ] 0,02
Insulation resist. per 1000 feet (power) [GΩ] 0,0061
Test voltage [V] 2000
Nominal voltage (power) [V] 500
Operating voltage (power) [V] 350
Old article number 720-0051-03015
BPVo-Euroclass Fca
