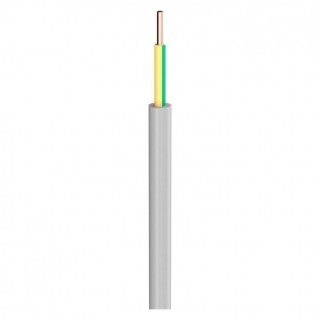

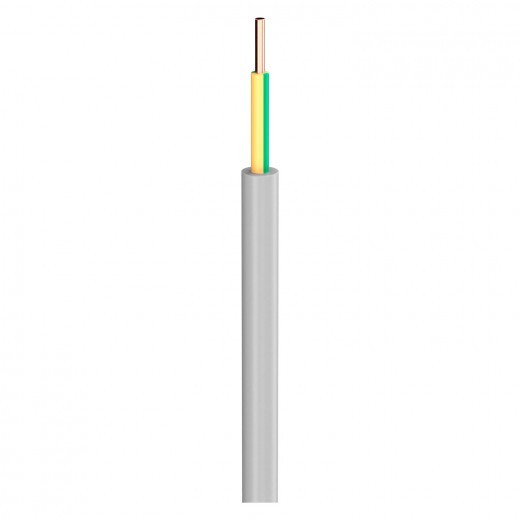

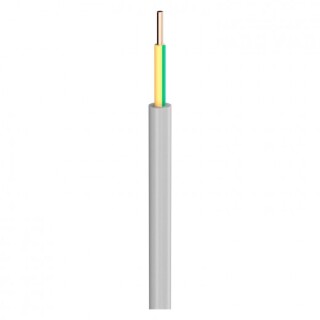

Power Lead NYM-J, 1 x 16,00 mm2, PVC, flame-retardant, diameter 9,70 mm, grey, Eca

Take your NYMs easy...
for these PVC jacketed lines are simply suitable for all kinds of indoor and outdoor installations (surface and flush mounting) as long as they are not exposed to direct sunlight. The wires are colour-coded according to VDE 0293 and stranded in layers. These leads comply with the EC Low-Voltage Directive EWG93/68/ or EWG73/23 resp. The NYM-J lines have an additional green-yellow protective earth conductor.

Advantages:

• Complies with the VDE 0250, VDE 0482-332-1-2 / IEC 60332-1 standards and other requirements
• mobile application up to +5°C

Application:

• for industrial and home installations
• for indoor and outdoor laying

Specs
Article number 720-0016-01160
Name NYM-J
EAN 4049371051514
Properties Analog
Properties OFC oxygen free copper
Application area ELA 100 V
Application area Installation
Application Power Lead
Colour grey
Colour detailed grey
Construction NYM-J
Jacket material PVC, flame-retardant
Jacket material (power) PVC, flame retardant and self-extinguishing
Jacket Ø [mm] 9,70
Number of Channels (power) 1
Inner conductor (power) 1
Inner conductor (power) [mm²] 16,00
Inner conductor Ø (power) [mm] 4,51
AWG (power) 5
Conductor insulation material PVC
Weight per 1 m [g] 232
Style variant round
Packing bulk stock
Temperature min. [°C] -40
Temperature max. [°C] 70
Width [mm] 9,7
Height [mm] 9,7
Insulation resist. per 1 km [GΩ] 0,02
Insulation resist. per 1000 feet [GΩ] 0,0061
Insulation resist. per 1km (power) [GΩ] 0,02
Insulation resist. per 1000 feet (power) [GΩ] 0,0061
Test voltage [V] 2000
Nominal voltage (power) [V] 500
Operating voltage (power) [V] 350
Old article number 720-0011-01160
