Neutrik NO2-4FDW-A opticalCON DUO Chassis Connector
Interesting items
Description

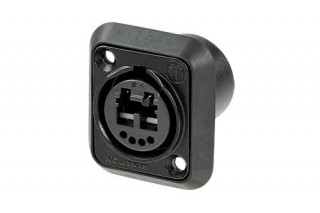

Chassis connector with black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65, front panel mount
The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection. Colored sealings are included to identify the fiber mode.
Features & Benefits
- Suggested OEM equipment connector due to LC front compatibility
- Designed as feedthrough with automatic sealing shutter
- Shutter with silicone gasket protects optical connection from dust and dirt
- Accommodates standard LC connectors on the rear for simple installation
- Connection on the front side either by rugged opticalCON or standard LC connector
- The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
- Water resistant according to IP65 ingress protection in mated condition
- In case of limited space the chassis can be mounted without rubber gasket. IP rating for this is IP 52.
- Color coded rubber sealing to identify fiber mode:
Multimode - black
Single mode PC - blue
Single mode APC - green
Attention! - Product Update
Improved contacts to allow indoor camera routing applications (pollution degree 1, overvoltage category 1) acc. to IEC 60664 up to 240 V ac.
Product
Title
NO2-4FDW-A
Gender
female
Electrical
Contact resistance
< 7 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 2 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V (1)
Mechanical
Insertion force
< 45 N
Withdrawal force
< 45 N
Lifetime
> 5000 mating cycles
Locking force
1000 N
Locking device
Push-Pull
Mounting direction
Front mounting
Chassis shape
D
Material
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Split sleeve
ceramics
Environmental
Temperature range
-40 °C to +75 °C
Optical
Optical connector
LC-Duplex Feedthrough
Product specific
(1)
Not compatible to the SMPTE standard, suitable for indoor studio applications acc. IEC 60664-1 (pollution degree 1, over voltage category 1)
