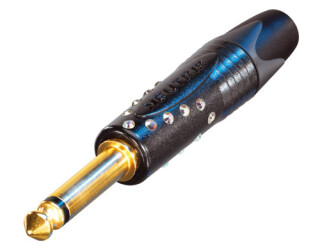

Neutrik NP2X-B-CRYSTAL 2 pole 1/4" professional phone plug, gold contacts, black metal housing with CRYSTALLIZED - Swarovski Elements
Category
Manufacturer
Item no.
- DON-NP2X-B-CRYSTAL
Shipping weight
- 0,10 kg
Material
Shell
Description
2 pole 1/4" professional phone plug, gold contacts, black metal housing with CRYSTALLIZED - Swarovski Elements
Features & Benefits
- 2 pole plug PX series made with CRYSTALLIZEDTM - Swarovski Elements
- Fancy, noble, valuable, attractive package - an eye catcher
Product
Title
NP2X-B-CRYSTAL
Connection Type
Plug
Gender
male
Electrical
Contact resistance
depends on mating connector m? (inner)
Dielectric strength
1 kVdc
Insulation resistance
> 2 G? (initial)
Rated current per contact
depends on mating connector A
Rated voltage
50 V
Mechanical
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wiresize
1 mm²
Wiresize
18 AWG
Wiring
Solder contacts
Material
Bushing
Polyacetal (POM) + PU
Contact plating
0.2 µm Au
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
made with CRYSTALLIZEDTM - Swarovski Elements
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Standard compliance
IEC 60603-11 / EIA RS-453
Solderability
Complies with IEC 68-2-20
Temperature range
-20 °C to +65 °C
