Neutrik NC3MP-BAG XLR Chassis Connector

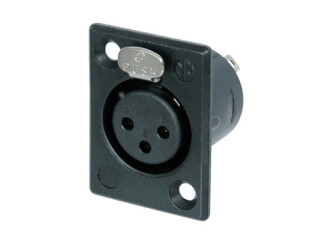

Neutrik NC3FP-BAG-1 XLR Chassis Connector
Description
3 pole female receptacle, solder contacts, black metal housing, silver contacts
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
Features & Benefits
- Smallest available hard wiring receptacles with large solder cups
- Short female receptacle
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
Product
Title
NC3FP-BAG-1
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 5 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
Solder contacts
Locking device
Latch lock
Mounting direction
Front mounting
Chassis shape
P
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
