Neutrik NE8FAH-C5 etherCON Chassis Connector A Series
Neutrik NE8FAV-C5 etherCON Chassis Connector A Series
Description

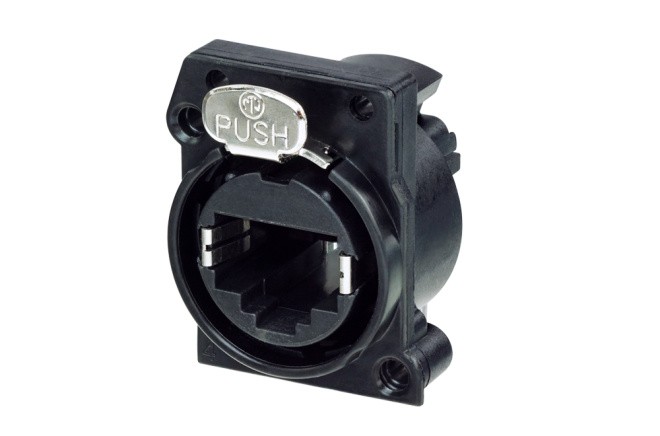

Vertical PCB mount RJ45 receptacle, CAT5e, A-Series cutout with latch lock, max. panel thickness 3 mm
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The all plastic A-Series offers the most space saving and cost effective design.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features & Benefits
- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Most space saving and cost effective design
- Isolated to panel ground
- Vertical PCB design at 24 mm distance to front panel ? fits the widely accepted industry standard dimension for XLRs, 1/4" jacks etc.
- PoE+ compliant according to 802.3at Type2
- CAT5e performance according to ISO/IEC 11801 and TIA/EIA 568-C.2
Product
Title
NE8FAV-C5
Gender
female
Electrical
Contact resistance
< 10 m?
Dielectric strength
1 kVdc
Frequencyrange
1 - 100 MHz
Insulation resistance
> 0.5 G?
Rated current per contact
1.5 A
Rated voltage
< 50 V
Transmission performance
CAT5e, acc. TIA/EIA 586C.2, IEC11801
Power over Ethernet
PoE+ acc. IEEE 802.3at
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 3 mm (0.12'')
Wiring
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
A
Material
Contact plating
0.2 µm Au over Ni plating
Contacts
Bronze (CuSn8)
Locking element
Ck 67 steel, treated
Shell
PBT D202G30
Environmental
Flammability
UL 94 V-0
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
