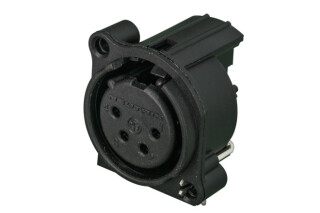

Neutrik NC4FAH-0 XLR Chassis Connector

3,13 €
(2,63 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 50 days
  • Shipping time: 51 - 52 workdays
  • Minimum purchase: 50
Order Now
Category
Item no.
  • NC4FAH-0-DON
Series

Description

4 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, retention spring instead of latch, color coding possible

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed fork type contacts with hard gold plating and polished contact areas.



Features & Benefits

  • Smallest XLR receptacles, highest packing density
  • Plastic housing, steel retention spring
  • Fork type female contact
  • Polished contact areas and hard gold plating
  • Housing flammability UL94HB
Product
Title
NC4FAH-0
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 7 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
separate ground contact to mating connector shell and front panel
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Locking force
> 20 separating force N
Wiring
Horizontal PCB mount
Locking device
Retention spring
Mounting direction
Rear mounting
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Bronze (CuSn6)
Locking element
Steel Ck67
Shell
Polyamide (PA 6.6 30 % GR)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
