Neutrik NC5MAV-SW XLR Chassis Connector

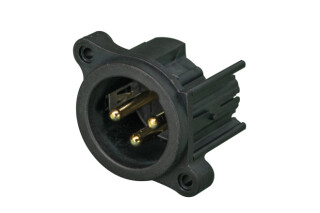

Neutrik NC3MAHL XLR Chassis Connector
Description
3 pole male XLR receptacle, grounding: ground contact connected to shell ground, but not to front panel and Pin 1, lateral left PCB mount
The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed fork type contacts with hard gold plating and polished contact areas. UL recognized component.
Features & Benefits
- Smallest XLR receptacles, highest packing density
- Plastic housing, steel latch lock
- Polished contact areas and hard gold plating
- Housing flammability UL94V-0
Product
Title
NC3MAHL
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
ground contact connected to shell ground, but not to front panel and Pin 1
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Brass (CuZn35Pb2)
Shell
Polyamide (PA 6.6 30 % GR)
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
