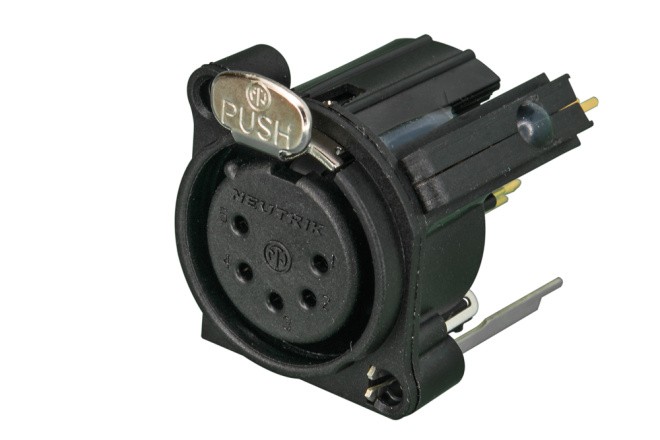

Neutrik NC5MAV-SW XLR Chassis Connector
Neutrik NC5FAV-SW XLR Chassis Connector
Item no.
- NC5FAV-SW-DON
Contacts
Series
Shell
Description
5 pole female XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount, color coding possible
The switching contacts are activated by the mating connector offering the possibility to indicate, monitor and control the mated connection. The switch provides a normal open and normal closed contact.
The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas.
Features & Benefits
- Smallest XLR receptacles, highest packing density
- Plastic housing, steel latch lock
- Tulip type female contact
- Polished contact areas and hard gold plating
- Housing flammability UL94HB
- Fitted with changeover switch
- Normally open, normally closed (NO - NC) contact
- Switch activated by inserting the cable connector
Product
Title
NC5FAV-SW
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 7 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
3 A
Rated voltage
< 50 V
Grounding Options
separate ground contact to mating connector shell and front panel
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
vertical PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Bronze (CuSn6)
Locking element
Steel Ck67
Shell
Polyamide (PA 6.6 30 % GR)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
