Neutrik NC5FAV-SW XLR Chassis Connector
Neutrik NC5FAH XLR Chassis Connector
Description

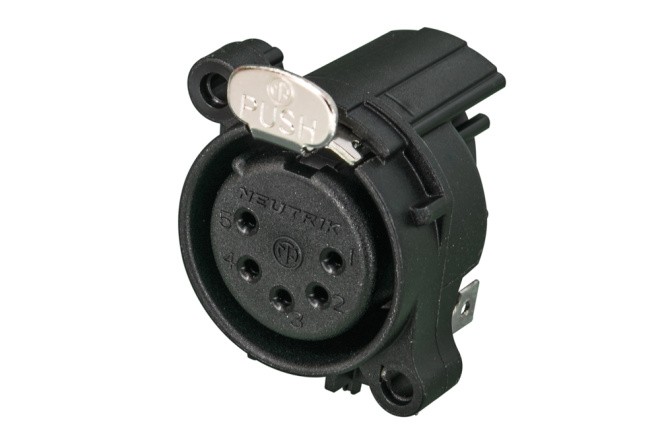

5 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount
The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed tulip type contacts with gold plating of contact area and tin plated pcb termination area.
Features & Benefits
- Smallest XLR receptacles, highest packing density
- Plastic housing, steel latch lock
- Tulip type female contact
- Polished contact areas and hard gold plating
- Housing flammability UL94HB
Product
Title
NC5FAH
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 7 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
3 A
Rated voltage
< 50 V
Grounding Options
separate ground contact to mating connector shell and front panel
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Bronze (CuSn6)
Locking element
Steel Ck67
Shell
Polyamide (PA 6.6 30 % GR)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
