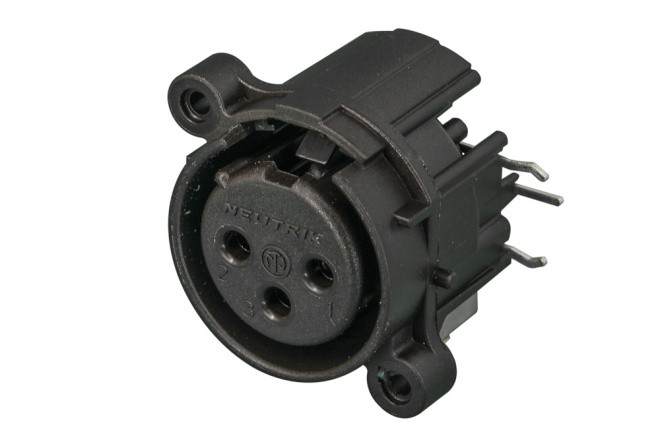

Neutrik NC3FAHR1-0 XLR Chassis Connector

1,21 €
(1,02 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 50 days
  • Shipping time: 51 - 52 workdays
  • Minimum purchase: 50
Order Now
Category
Item no.
  • NC3FAHR1-0-DON
Series

Description

3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, lateral right PCB mount, Retention spring instead of latch

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component.



Features & Benefits

  • Smallest XLR receptacles, highest packing density
  • Plastic housing, steel retention spring
  • Tulip type female contact
  • Polished contact areas and hard gold plating
  • Housing flammability UL94V-0
Product
Title
NC3FAHR1-0
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
Pin 1 connected direct to front panel and connector shell, no separate ground contact
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Locking force
> 20 separating force N
Wiring
Laterial right PCB mount
Locking device
Retention spring
Mounting direction
Rear mounting
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
