Neutrik NE8FAH Horizonal PCB mount RJ45 receptacle
Category
Manufacturer
Item no.
- DON-NE8FAH
Shipping weight
- 0,10 kg
Series
Pins
Gender
Interesting items
Description

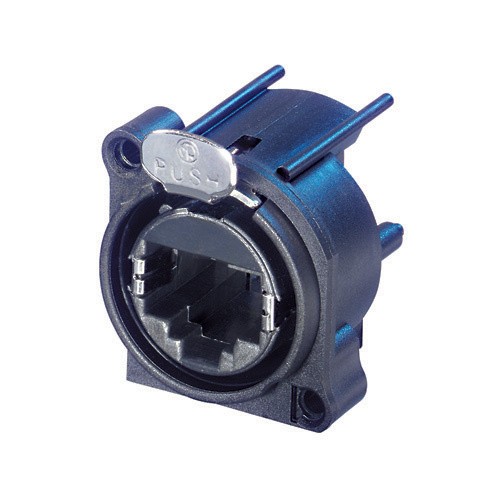

Horizonal PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3 mm
The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The all plastic A-Series offers the most space saving and cost effective design.
Features & Benefits
- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Most space saving and cost effective design
- Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
- Isolated to panel ground
- Crosstalk compensation at connecting hardware to achieve CAT5e on request
Product
Title
NE8FAH
Gender
female
Electrical
Contact resistance
< 10 m? (inner)
Dielectric strength
1 kVdc
Frequencyrange
1 - 100 MHz
Insulation resistance
> 0.5 G?
Rated current per contact
1,5 A
Rated voltage
50 V
Transmission performance
Class D
Standard compliance
TIA/EIA 586B, IEC11801
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 3 mm 0.12'
Wiring
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
rear
Chassis shape
A
Material
Contact plating
0.2 µm Au over Ni plating
Contacts
Bronze (CuSn8)
Insert
PBTP 15 % GR
Shell
PBTP 15 % GR
Environmental
Flammability
UL 94 V-0
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
