Neutrik NC3MAV XLR Chassis Connector
Category
Manufacturer
Item no.
- NC3FAV2-DON
Product weight
- 0,01 kg
Shipping weight
- 0,02 kg
Contacts
Series
Pins
Gender
Interesting items
Description

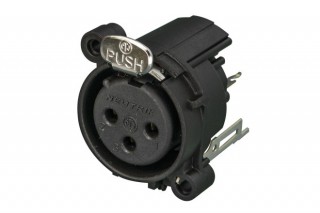

3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component.
Features & Benefits
- Smallest XLR receptacles, highest packing density
- Plastic housing, steel latch lock
- Tulip type female contact
- Polished contact areas and hard gold plating
- Housing flammability UL94V-0
Product
Title
NC3FAV2
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
vertical PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
