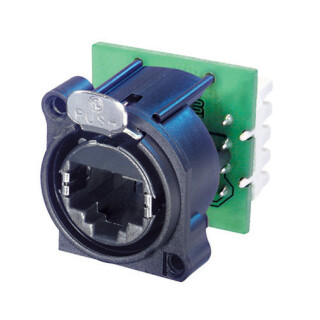

Neutrik NE8FAV-YK Panel mount RJ45 receptacle with IDC terminals, A-Series cutout with latch lock
Category
Manufacturer
Item no.
- DON-NE8FAV-YK
Shipping weight
- 0,10 kg
Series
Pins
Gender
Description
Panel mount RJ45 receptacle with IDC terminals, A-Series cutout with latch lock, max. panel thickness 3 mm
The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The all plastic A-Series offers the most space saving and cost effective design.
Features & Benefits
- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Most space saving and cost effective design
- Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
- Selectable ground - panel connection
- Easy and quick mounting using Krone punch down terminals
Product
Title
NE8FAV-YK
Gender
female
Electrical
Contact resistance
< 10 m? (inner)
Dielectric strength
1 kVdc
Frequencyrange
1 - 100 MHz
Insulation resistance
> 0.5 G?
Rated current per contact
1,5 A
Rated voltage
50 V
Transmission performance
CAT 5e
Standard compliance
TIA/EIA 586B, IEC11801
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 3 mm 0.12'
Wiresize
0.14 - 0.5 mm²
Wiresize
26 - 20 AWG
Locking device
Latch lock
Mounting direction
rear
Chassis shape
A
Material
Contact plating
0.2 µm Au over Ni plating
Contacts
Bronze (CuSn8)
Insert
PBTP 15 % GR
Shell
PBTP 15 % GR
Strain relief
CuZn35Pb2, Tin plated
Environmental
Flammability
UL 94 V-0
Temperature range
-30 °C to +80 °C
