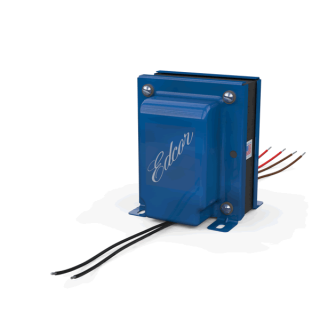

Edcor XPWR146 Power transformer
Interesting items
Description
Prim.: 120V, 60Hz., 230V, 50/60Hz
Sec.:
200V at 250mA
6.3V at 4.5A.
Sec.:
200V at 250mA
6.3V at 4.5A.
| Primary (input) Voltage | 120Vrms, 60Hz, 230Vrms, 50/60Hz. or 240Vrms, 50/60Hz. |
| Secondary (output) Voltage | 200V@250mA & 6.3V@4.5A |
| Bobbin Material | Nylon 6/6 GF-30 |
| Flamability Rating | Class B 130°C |
| Core Material | M-6 29 ga. grain oriented lamination steel |
| Secondary Insulation (transformer) | Clear air dry polyester varnish |
| Termination | UL1015, 18 ga. lead wire |
| Mounting | Powder coated steel end bells |
| Color | RAL 5010 Gentian Blue |
| Weight | 4.5 lbs. |
| Compliance | RoHS & REACH |
