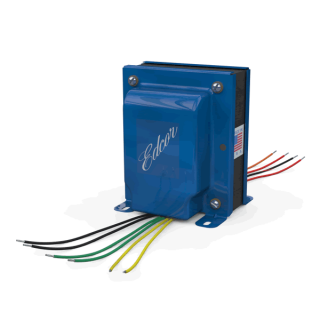

Edcor XPWR002 Power transformer for a 120V, 60Hz. or 240V, 50/60Hz. line to 720V

253,79 €
(213,27 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 56 days
  • Shipping time: 57 - 58 workdays
Order Now
Category
Manufacturer
Item no.
  • XPWR002
Product weight
  • 3,32 kg
Shipping weight
  • 3,40 kg

Description

Primary (input) Voltage 240Vrms, 50/60Hz.
Secondary (output) Voltage:
720V(360-0-360)@220mA,
60V@800mA,
6.3V@7A
5V@4A
  • Primary (input) Voltage 120Vrms, 60Hz. or 240Vrms, 50/60Hz.
  • Secondary (output) Voltage 720V(360-0-360)@220mA, 60V@800mA, 6.3V@7A & 5V@4A
  • Bobbin Material Nylon 6/6 GF-30
  • Flamability Rating Class B 130°C
  • Core Material M-6 29 ga. grain oriented lamination steel
  • Secondary Insulation (transformer) Clear air dry polyester varnish
  • Termination UL1015, 20 ga. lead wire
  • Mounting Powder coated steel end bells
  • Color RAL 5010 Gentian Blue
  • Weight 7.33 lbs
  • Compliance RoHS & REACH
