Edcor WSM600/15K

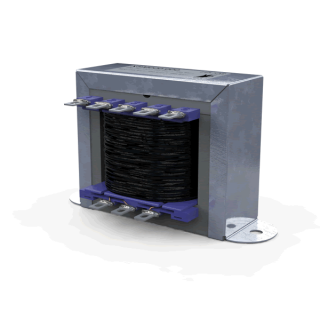

Edcor XPWR024
Category
Manufacturer
Item no.
- XPWR024
Product weight
- 0,73 kg
Shipping weight
- 0,73 kg
Secondary
Interesting items
Description
Primary: 240V, 60Hz
Secondaries:
350V (175-0-175) at 60mA center tapped
6.3V (3.15-0-3.15) at 2A center tapped
Secondaries:
350V (175-0-175) at 60mA center tapped
6.3V (3.15-0-3.15) at 2A center tapped
| Primary (input) Voltage | 240Vrms, 60Hz. |
| Secondary (output) Voltage | 350V@60mA & 6.3V@2A |
| Bobbin Material | Nylon 6/6 GF-30 |
| Flamability Rating | Class B 130°C |
| Core Material | M-6 29 ga. grain oriented lamination steel |
| Secondary Insulation (transformer) | Clear air dry polyester varnish |
| Termination | 0.187" (3/16") quick disconnects |
| Mounting | Zinc plated steel channel/frame |
| Weight | 1.6 lbs. |
| Compliance | RoHS & REACH |
