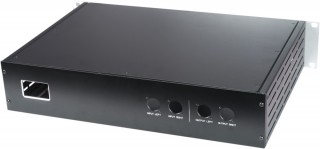

V-Case Pro 19" Rack Case Body 1U
Interesting items
Description
Professional 19" Rack Case with vented side-panels, optional mounting rail system custom backpanel and extra stabilisation features
The NRG V-Case Pro is a flagship in the 19" enclosure marked. It provides a lot of mounting and stabilisation options for ambitious home/ DIY people or professional industry series production. Features
- Vented wear-plates for optimum cooling
- Mounting-slots on the side-plates
- A special chamfer-less design allow a very wide usable width of 435mm
- Two Integrated Case Grounding-Connectors
- Optionale Mounting Rail System to mount PCBs easily inside the case
- Easily replacable Front- and Rear-Panel
- Stackable Side-Panels make you able to achieve any height you want.
- Black industrial powder coating, bondet at 220° temperature for highest scratch and hit resistance
- Handles can be mounted directly on the 1U and 3U case (for example Schroff Handles fit perfectly)
- A lot of options to fix and stabilize the top/bottom cover
- Aluminum top and bottom plate, so you can CNC or cut out parts or engrave your Logo onto the Top/Bottom Plate
- You can install the Mounting Rail System on different height positions, so you can create a second installation layer for PCBs, Potentiometers, Switches, etc.
- Press-Fitted M3 Threads on top/bottom cover and M4 Threds for front/rear panel
- M3 Countersinks at Top/Bottom Cover
- This case can also be delivered without 19" ears on the Frontpanel for Hi-Fi or Desk-Use.
- Included 6,3mm Double-Ground-Connections to Case on all side panels (total 4 Case-Ground connections)

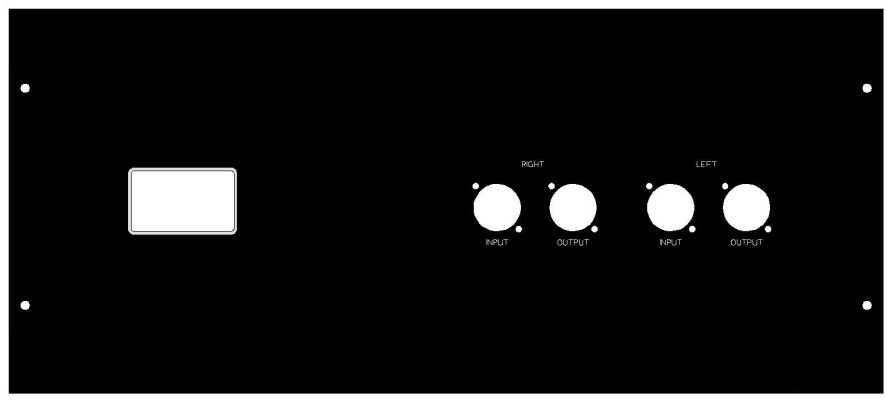

- Custom Backpanel
Usable depth: 300mm
Maximum of possible width: 435mm
Available heights: 1U, 2U, 3U, 4U and more (Stackable design)
Color: Black industrial powdercoating 220°
Customer-Pics
Log in to upload a pic!
"Super geräumiges und hochwertig verarbeitetes Gehäuse, alles sitzt wie angegossen und leicht zu montieren ist es auch. Strategisch wichtige Stellen sind frei von Pulverbeschichtung für guten Kontakt untereinander und damit bessere Abschirmwirkung. Die Innenhöhe bei 1 HE erlaubt sogar, die großen Edcor-XSM-Trafos zu montieren. Kauf ich wieder!"
"Super geräumiges und hochwertig verarbeitetes Gehäuse, alles sitzt wie angegossen und leicht zu montieren ist es auch. Strategisch wichtige Stellen sind frei von Pulverbeschichtung für guten Kontakt untereinander und damit bessere Abschirmwirkung. Die Innenhöhe bei 1 HE erlaubt sogar, die großen Edcor-XSM-Trafos zu montieren. Kauf ich wieder!"
