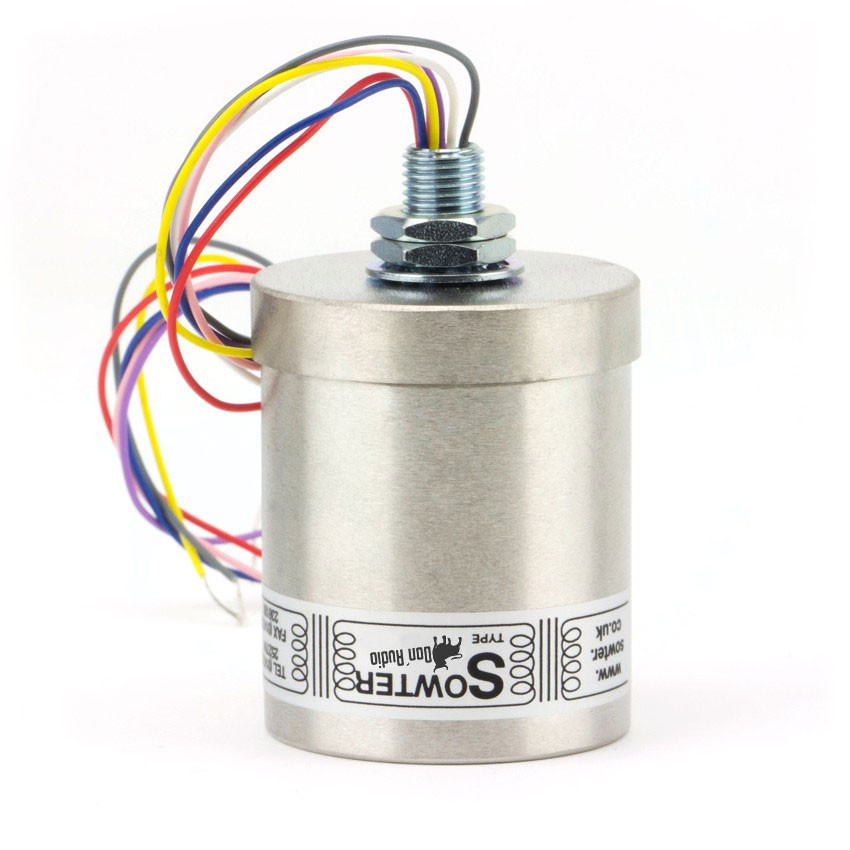

Sowter 1449 Original Opto Comp 15K/600 transformer (replaces 1009)
Interesting items
Description
Ratio 5:1. 15k/600 ohms output transformer for driving balanced line from ac coupled cathode follower or SRPP circuit. Total dc resistance ref secondary 31 ohms. Colour coded leads and threaded grommet mounting. Max output level +30 dBu. 30% Mumetal core for exceptional bandwidth and dynamic range. Similar to UTC A24 and Triad HS-50 (in overall 5:1 configuration) but with improved bandwidth. Suitable for Drip Electronics Opto 4 and 5 PCB. Also suitable for UE-100 Output.
This transformer is very similar to type 1010 and is essentially a size and cost reduced version achieved by using a smaller lamiination size and a smaller proportion of Mumetal laminations. The can size is also smaller and less expensive. The performance is unaffected except at very high level low frequencies where the THD measures somewhat higher.
