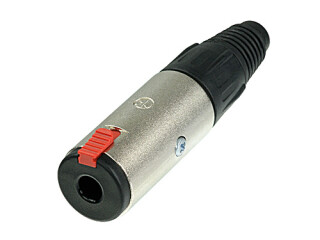

Neutrik NJ3FC6 Professional locking 1/4" cable jack for secure in-line connections. Nickel housing, silver contacts, excellent cable protection
Category
Manufacturer
Item no.
- DON-NJ3FC6
Shipping weight
- 0,10 kg
Contacts
Series
Description
Professional locking 1/4" cable jack for secure in-line connections. Nickel housing, silver contacts, excellent cable protection
The 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
Features & Benefits
- Securely locking cable jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Metal shell makes it extremely robust and reliable
- Neutrik cable retention and boot as on XLR connectors
- Solder terminals
- Colored boots available in 10 colors for color coding and marking
Product
Title
NJ3FC6-BAG
Connection Type
Jack
Gender
female
Electrical
Contact resistance
< 6 m? (inner) (initial)
Dielectric strength
1 kVdc
Insulation resistance
? 1 G? @ 500 V dc
Rated current per contact
10 A
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
< 20 N
Withdrawal force
< 20 N
Lifetime
> 10000 mating cycles
Locking force
> 80 N
Wiresize
1 mm²
Wiresize
18 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
2 µm Ag
Contacts
Brass (CuZn37) (Ground)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black
Strain relief
Polyacetal (POM)
Environmental
Standard compliance
EIA RS 453, IEC 60603-11
Solderability
Complies with IEC 68-2-20
Temperature range
-25 °C to +70 °C
