Neutrik NBB75DFIB D Series
Neutrik NBB75DSI D Series
Description

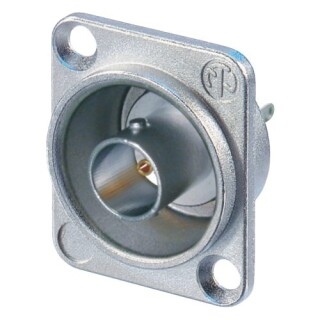

Isolated BNC chassis connector, solder version in nickel D-shape housing
Neutrik's BNC chassis connectors offer a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).
Features & Benefits
- Gold plated center contact
- True 75 ? design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing - provides flush mounting and protection from demage
- Color coding possible
Product
Title
NBB75DSI
Connection Type
BNC 75 ?
Gender
female
Electrical
Signal Type
HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance
? 3 m? (inner)
Contact resistance
? 2 m? (outer)
Dielectric strength
1,5 kVdc
Impedance
75 ?
Insulation resistance
> 5 G?
Rated voltage
<50 V
VSWR
?1.03/>37 dB up to 1 GHz
?1.05/>32 dB up to 2 GHz
?1.08/>28 dB up to 3 Ghz
?1.05/>32 dB up to 2 GHz
?1.08/>28 dB up to 3 Ghz
Mechanical
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Wiring
Solder contacts
Locking device
Bayonett
Mounting direction
Front mounting
Chassis shape
D
Material
Contacts
Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
Insert
PTFE
Shell
Polyacetal (POM) (Insulation Sheell)
Shell plating
Optalloy®
D-Shape housing
Zinc diecast (ZnAl4Cu1) gal Ni plating
Environmental
Temperature range
-30 °C to +85 °C
