Neutrik NBB75DFIB D Series

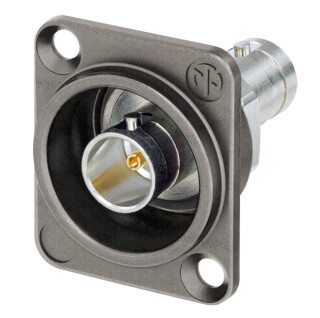

Neutrik NBB75DFGX D Series
Description
Grounded UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing
Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing
Features & Benefits
- Optimized gold plated cage type center contact for UHD signals as 4K or 8K
- Swiss black chrome plating
- Grounded panel mount
- Standard D-shape housing provides flush mounting and protection from damage
- Color coding possible
- Fully compatible with conventional BNC cable connectors
Optimized Return Loss
Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
For more details see Neutrik UHD BNC White Paper.
New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
Product
Title
NBB75DFGX
Connection Type
BNC 75 ?
Gender
female
Electrical
Contact resistance
? 3 m? (inner)
Contact resistance
? 2 m? (outer)
Dielectric strength
1.5 kVdc
Impedance
75 ?
Insulation resistance
> 5 G?
Rated voltage
< 50 V
VSWR
?1.06 / >30 dB up to 6 GHz
?1.13 / >24 dB up to 12 GHz
?1.22 / >20 dB up to 18 Ghz
?1.13 / >24 dB up to 12 GHz
?1.22 / >20 dB up to 18 Ghz
Signal type
UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Mechanical
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Locking device
Bayonett
Mounting direction
Front mounting
Chassis shape
D
Material
Contacts
Brass (CuZn39Pb3), 0.2 µm AuCo (center contact)
Insert
PTFE
Shell
Polyacetal (POM) (insulation shell)
Shell plating
Antraloy
D-shape housing
Zinc diecast (ZnAl4Cu1)
Environmental
Temperature range
-30 °C to +85 °C
