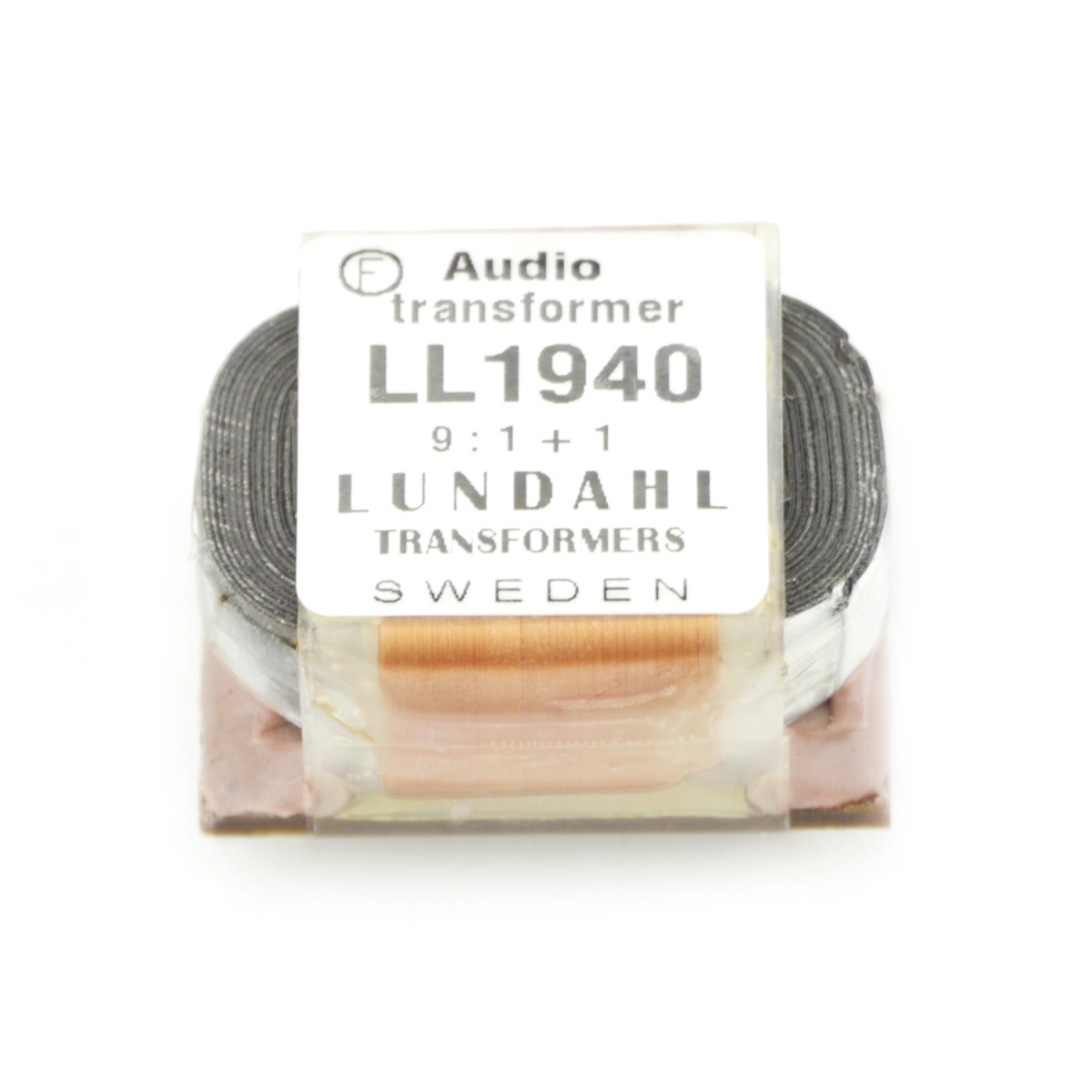

Lundahl LL1940 Audio transformer

68,56 €
(57,61 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 14 days
  • Shipping time: 15 - 16 workdays
Order Now
Category
Manufacturer
Item no.
  • LL1940
Product weight
  • 0,04 kg
Shipping weight
  • 0,10 kg
Application
Compliance

Interesting items

  1. Lundahl LL1935 Audio transformer
    Lundahl LL1935 Audio transformer

    Average Rating: 5/55
    81,93 €
    (68,85 € excl. vat)
    including VAT., plus shipping
  2. Lundahl LL1690 Audio transformer
    Lundahl LL1690 Audio transformer

    Average Rating: 5/55
    154,28 €
    (129,65 € excl. vat)
    including VAT., plus shipping

Description

LL1940 is a high turns ratio transformer designed for tube microphones. Conventionally, this type of transformer has a mu metal lamination core for minimum distortion and maximum transparency.

 LL1940 is a high turns ratio transformer designed for tube microphones. Conventionally, this type of transformer has a mu metal lamination core for minimum distortion and maximum transparency. For the LL1940 we have chosen a silicon iron C-core (with approx 10 times as high distortion compared to mu metal) to add more “transformer character” to the signal. The transformer has an internal Faraday shield for optimal output balance, but no housing.

Turns ratio:        9 : 1 + 1

Dimensions  (L x W x H above PCB, in mm) 31 x 25 x 16

Spacing between pins 3.81 mm  (0.15")

Spacing between rows of pins 22.86 mm  (0.9")

Rec. PCB hole diameter: 1.5 mm

Weight: 35 g
