Lundahl LL1663 Tube amplifier output transformer 50mA

201,72 €
(169,51 € excl. vat)
including VAT., plus shipping
  • Availability: 2
  • Shipping time: 1 - 2 workdays
Order Now
Please select

Category
Manufacturer
Item no.
  • LL1663-50mA
Product weight
  • 1,30 kg
Shipping weight
  • 1,30 kg

Interesting items

  1. Mundorf TCAP-47T5.600 uF ±5%, 600VDC
    Mundorf TCAP-47T5.600 uF ±5%, 600VDC
    Average Rating: 5/55
    49,90 €
    (41,93 € excl. vat)
    including VAT., plus shipping
  2. TAKMAN Audio Grade Carbon Film Resistor REX 68K
    TAKMAN Audio Grade Carbon Film Resistor REX 68K
    1,45 €
    (1,22 € excl. vat)
    including VAT., plus shipping

Description

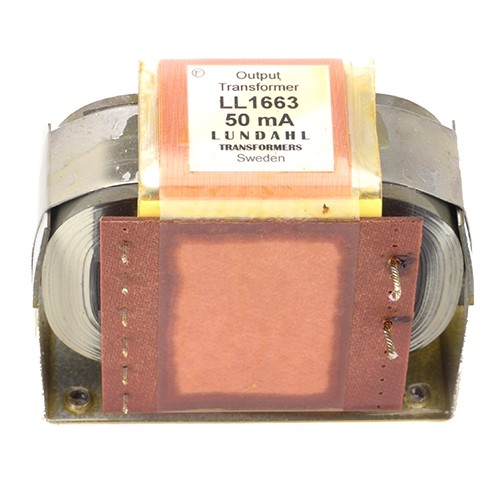

The LL1663 is a four-sectioned dual coil C-core tube amplifier output transformer for 5 k: 8 ohms impedance ratio available in PP and SE versions.
The coil is wound using our high internal isolation technique with isolation foil between each copper layer. The core is an audio C-core of our own production.

Weight: 1.35 kg
Static resistance of each primary: 102 W
Static resistance of secondary: 0.4 W
Isolation between windings / between windings and core: 4 kV / 2 kV
Max DC current through any primary winding: 160mA
Question on item

Privacy policy

Customer-Pics

Log in to upload a pic!

At moment there are no customer pics for this product.

Product Tags

Ratings from users

  • 5 Stars: 0% (0)
  • 4 Stars: 0% (0)
  • 3 Stars: 50% (1)
  • 2 Stars: 0% (0)
  • 1 Star: 0% (0)
Average product review: Average Rating: 4/54

(This product has got 2 Reviews| View more ratings in other languages)

Share your experience with other customers
More product reviews
  1. Average Rating: 3/53 Atto R. Wrote at 19.01.2023
    seems all Ok as arrived.
    Ive just received the product, but not yet installed. Therefore unable to express my opinion on the peformance
