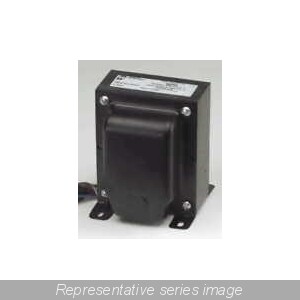

Hammond Audio Transformer 5K OHM 100 WATT 1650R
Manufacturer
Item no.
- HA-1650R
Product weight
- 5,44 kg
Shipping weight
- 5,44 kg
Interesting items
Description
- 100 Watt RMS
- Primary Impedance: 5,000 Ohms ct
- Secondary Impedance: 4-8-16 Ohms
- Max. DC: 318 ma. per side
- Please see our NEW & improved versions (easy wire secondary series).
- Designed for push-pull tube output circuits.
- Enclosed (shielded), 4 slot, above chassis Type "X" mounting.
- Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum.
- Insulated flexible leads 8" min.
- Manufactured with plastic coil forms for coil support and insulation.
- Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
- Due to the unique interleaving of the windings BOTH secondary windings must be engaged to meet specifications (see hook-up diagrams below).
- For the "ultimate" in Push-Pull output see our line of epoxy potted output transformers.
1645 Only
- Secondary Connections (Due to the unique interleaving of the windings BOTH secondary windings must be engaged to meet specifications)
- To hook up 4/8/16 ohm secondary loads - see schematic (do not use the white wire).
- To hook up secondary to 70V loads, jumper Blk/Yel wire to Grn wire. Connect load to Blk and White wires.
