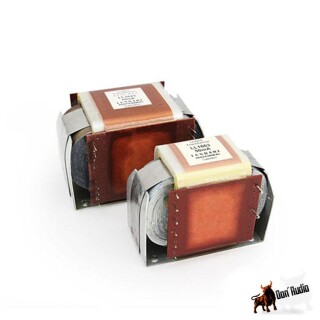

Lundahl LL1627 tube amplifier output transformer
Category
Manufacturer
Item no.
- LL1627
Product weight
- 2,50 kg
Shipping weight
- 2,50 kg
Compliance
Description
The LL1627 is output transformer for tube amplifiers.
All transformers are based on the same core size, winding structure and secondaries, but differ in number of turns (and thus impedance level) of primaries. The transformers are highly sectioned with harmonically sized sections, which results in a minimum leakage inductance. This, combined with a low capacitance coil winding technique results in a wide frequency range.
The transformers have a special audio C-core of our own production, which is gapped for desired DC current.
The transformers are of open frame type suitable for mounting inside an amplifier housing.
