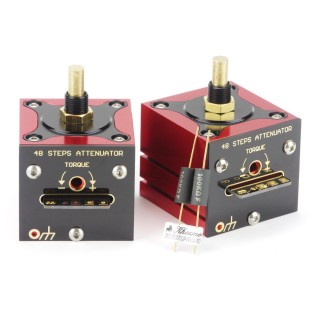

Khozmo Stepped Attenuator, Vishay SMD Mono 10K

120,86 €
(101,56 € excl. vat)
including VAT., plus shipping
  • Made to order
Please select
  • Channels
  • Shunt Type Attenuator

Do you want to be notified when this article ist available? Please fill in the form Notify me when article is available.

Category
Manufacturer
Item no.
  • KZ-SH-VD1-10K
Shipping weight
  • 0,20 kg
Function

Interesting items

  1. Elma Rotary switch Type 01 Eyelets 2 Wafer 4 x 6 Shorting...
    Elma Rotary switch Type 01 Eyelets 2 Wafer 4 x 6 Shorting 01-2263
    Average Rating: 5/55
    starting from 79,00 €
    (66,39 € excl. vat)
    including VAT., plus shipping
  2. Elma Rotary switch Type 04 Eyelets 2 Wafers 4 x 6...
    Elma Rotary switch Type 04 Eyelets 2 Wafers 4 x 6 Non-Shorting °30, 04-2264
    Average Rating: 5/55
    110,34 €
    (92,72 € excl. vat)
    including VAT., plus shipping

Description

SHUNT type: Only two resistors in signal path
Switching type: MBB (Make Befor Break)
Number of steps: 48
Attenuation range: -60 dB ... 0 dB
Attenuation per step: steps 1 to 11 - 2dB, 12 to 48 - 1dB
Contact material: Hard gold
Polished wiper and contact pins
Extremely short signal path
Channel matching: +/-0.1 dB
Resistance: 10, 20, 50, 100, 250 kohm or custom values
Resistors: Vishay/Dale RN55 1% 100ppm , 1/8W, low noise, non-inductive, metal film
Mechanical life: > 50 000 cycles
CNC machined PA11 aluminium body
Precision ball bearing support
Shaft diameter: 6 mm
Indexing angle: 7,2 deg
