Hammond Multi-Tap PRI, 50/60HZ, 403VA 370MX

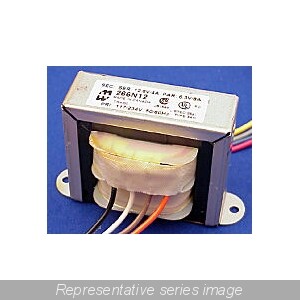

Hammond Power Transformer 5V ,15VA 266M5
Category
Manufacturer
Item no.
- HA-266M5
Product weight
- 0,59 kg
Shipping weight
- 0,59 kg
Application
Interesting items
Description
Features
- Primary 117/234 VAC, 50/60 Hz.
- All units have dual secondaries except 266LA25 (C.T. secondary only). If you only require a single primary & secondary check out our more economical 166 Series.
- Secondaries can be used as; a center tapped secondary, parallel connected or used individually (except 266LA25).
- Units are designed for use with all windings engaged.
- Open style.
- Minimum 6" long leads.
- Dual bobbin design - no electrostatic shield required.
- We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
- Hi-Pot test of 2,000V RMS.
- UL listed (# E207860) Type 3AH
- CSA certified (209651)
