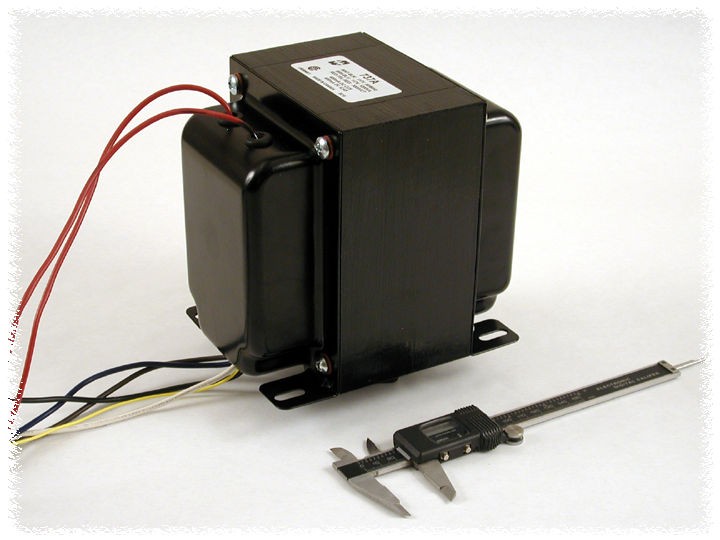

Hammond 117/234V 50/60Hz 2000VCT 728A

160,86 €

(135,17 € excl. vat)

Recommended retail price: 173,30 €

Scale price:

* Price per unit

including VAT., plus shipping

Order Now quantity: + (Increase quantity) - (Decrease quantity) Stk

Category

Manufacturer

Item no.

Product weight

Shipping weight

Interesting items

Hammond Power Transformer 5V ,15VA 266M5

35,40 €
(29,74 € excl. vat)
including VAT., plus shipping
Hammond Choke 10H @ 200mA DC 193J
5

78,02 €
(65,56 € excl. vat)
including VAT., plus shipping

Two versions available:
- Primary 115 VAC, 50/60 Hz. or
- Primary 117/234 VAC, 50/60 Hz.
V.A: 346
A.C. High Voltage Secondary R.M.S: 2.000 C.T.
H.V. Secondary Current (CSS): 173ma.
H.V. Secondary Current (ICAS): 259ma.
Drawing type: A

Two versions available:
- Primary 115 VAC, 50/60 Hz. or
- Primary 117/234 VAC, 50/60 Hz.
At 2,000 VAC and above, secondary leads are through rubber bushings (figure B).
Units can be run full wave bridge or full wave C.T.
V.A. is a C.C.S. rating
Current ratings are CCS (Continuous Commercial Service) & ICAS ratings (Intermittent Commercial or Amateur Service).
Enclosed, 4 hole chassis mount.
Minimum 6" long leads.
Class A insulation (105 degrees C).
Hi-Pot test at a minimum of twice secondary voltage
Conservative designs - CSA certified (209651).
For other H.V. combinations check out our Peter W. Dahl series as well.
Notes:
- VA rating specified is CCS (Continuous Commercial Service)
- ICAS ratings (Intermittent Commercial or Amateur Service)
- 115VAC only models - Input Black & Black
- Dual Primary (117/230VAC) models - 117VAC input: connect Blue to Black and Brown to White.
- 234VAC input: connect Brown to Black - input is Blue & White
