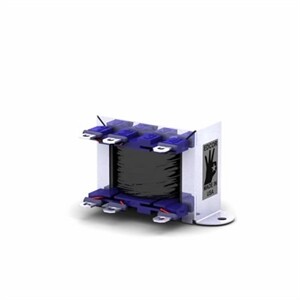

Edcor WSM15K/600

44,59 €
(37,47 € excl. vat)
Scale price:
  • from 5: 43,70 €*
  • from 10: 42,81 €*
  • from 25: 42,36 €*
  • from 50: 41,91 €*
  • from 100: 40,13 €*
* Price per unit
Scale price:
  • from 5: 43,70 €*
  • from 10: 42,81 €*
  • from 25: 42,36 €*
  • from 50: 41,91 €*
  • from 100: 40,13 €*
* Price per unit
including VAT., plus shipping
  • In stock!
  • Stock: 8 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • EDCWSM15K600
Product weight
  • 0,18 kg
Shipping weight
  • 0,25 kg
Gear
Application
Compliance

Description

1/2W 15K Ohms to 600 Ohms (5:1) line level matching transformer.
Schematic
Wattage 0.5W
Input Maximum Voltage 10Vrms
Turns Ratio 5:1
Primary (input) Impedance 15K Ohms
Primary (input) DCR 294 Ohms
Primary (input) Inductance 20H
Secondary (output) Impedance 600 Ohms
Secondary (output) DCR 64 Ohms
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Plot Frequency Response/THD+N
Insertion Loss 0.5 dB
Bobbin Material Glass Filled Nylon 6/6
Flamability Rating Class B 130°C
Core Material M6 29 ga. line grain oriented steel
Termination 0.187" (3/16") quick disconnects
Mounting Zinc plated steel channel/frame
Weight 0.4 lbs.
Dimensions 2.375" (L) x 1.675" (W) x 1.383" (H)
Dimensional Drawing 15000-EI050-625-18
Manual WSM Series Manual
Compliance



Also recommended as output trafo for the g-pultec gainstage, Pultec Output, STA-Level Compressor, Altec 436 Output transformer
