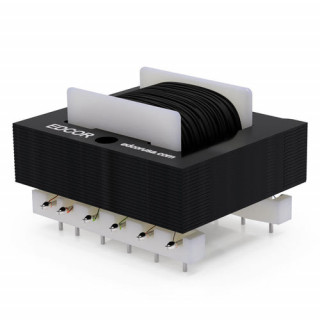

Edcor PCW600/600/600 1:1:1 1/2W balanced or unbalanced tri-filar line matching transformer

Design
These audio matchers use high quality low noise components to deliver broadcast and recording quality sound. Mathematically designed and tri-filar wound to produce a turns ratio of 1:1:1 for line level signals.

Primary (Input)/Secondary (Output)
The transformer has three identical windings.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

Termination/Mounting
This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.

Specifications

Wattage 0.5W
Input Maximum Voltage 20Vrms
Input Balanced or Unbalanced
Primary (input) Impedance Depends on model.
Output Balanced or Unbalanced
Secondary (output) Impedance Depends on model.
Turns Ratio Depends on model.
Winding Configuration Tri-Filar Winding
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Frequency Response/THD+Noise Plot PCW150/150/150
Insertion Loss <0.5 dB
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI63 (0.625" x 0.5")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 12 pin PCB
Mounting
Printed circuit board (PCB)
Mounting Orientation Laydown
Weight 0.4 lbs.
Compliance RoHS & REACH
Dimensional Drawing 15000-EI625-050-P12
3D Model (STEP)
15000-EI625-050-P12
