Edcor MXL-5cs
Edcor MXL5
Category
Manufacturer
Item no.
- EDCMXL5
Product weight
- 0,34 kg
Shipping weight
- 0,40 kg
Compliance
Interesting items
Description
1:5 microphone level signal transformer
Products specifications

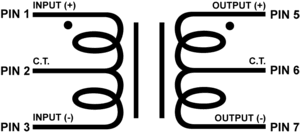

| Schematic |  |
| Input Maximum Voltage | 2.5Vrms |
| Turns Ratio | 1:5 |
| Primary (input) Impedance | 2.6K Ohms |
| Primary (input) DCR | 20 Ohms |
| Primary (input) Inductance | 0.3H |
| Secondary (output) DCR | 171 Ohms |
| Frequency Response | 20~20K Hz., <1dBu |
| THD+Noise | <0.05% @ 1K Hz. |
| Plot |
 Frequency Response/THD+N
|
| Insertion Loss | 0.5 dB |
| Copper Shielding | No |
| Bobbin Material | Glass Filled Nylon 6/6 |
| Flamability Rating | Class B 130°C |
| Core Material | M6 29 ga. line grain oriented steel |
| Termination | 8 pin PCB |
| Mounting | Printed circuit board mounted (PCB) |
| Weight | 0.25 lbs. |
| Dimensions | 1.62" (L) x 1.33" (W) x 0.8" (H) |
| Dimensional Drawing |
15000-EI050-037-P08
|
| Manual |
MXL Series Manual
|
