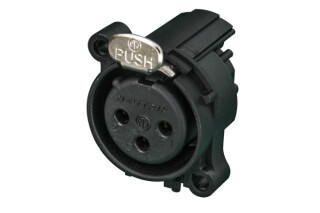

Neutrik NC3FAAH XLR receptacle, 3 pole female horizontal PCB mount
Category
Manufacturer
Item no.
- NC3FAAH-100
Product weight
- 0,20 kg
Shipping weight
- 0,40 kg
Contacts
Series
Pins
Description
100 Stück Verpackung. 3 pole female XLR receptacle, grounding: without ground/shell contact, horizontal PCB mount
Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. Push latch assembled. Flammability rating UL94HB.
Features & Benefits
- Most cost-effective series
- "Tulip" type contact design with high contact pressure for highest durability
- Selective gold plated contact and PCB termination area for best conductivity and solderability
Product
Title
NC3FAAH
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
= 4 pF
Contact resistance
= 6 mO
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GO (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
no grounding
Mechanical
Insertion force
= 20 N
Withdrawal force
= 20 N
Lifetime
> 1000 mating cycles
Wiring
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
rear
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Flange
Black Plastic
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
