Sommercable Microphone cable Stage 22 Highflex 2 x 0,22 mm², Ø6,40mm, blue

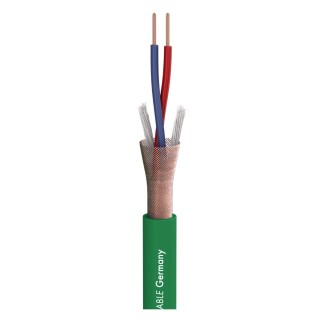

Sommercable Microphone cable Stage 22 Highflex 2 x 0,22 mm², Ø6,40mm, green
Category
Manufacturer
Item no.
- 200-0004
Product weight
- 0,04 kg
Shipping weight
- 0,05 kg
Interesting items
Description
Price per meter (m),
for complete rolls please order 100m
One thick coat...
will protect the interior against mechanical wear, such as pulling, tugging, kinking and knotting. For this reason we have fitted the STAGE 22 with a thick 6,40 mm outer jacket. The electrical data and the technical construction are also worth a look: Because of the fine, densely, stranded single wires, the STAGE 22 offers low capacitance and high bending cycles.
The shielding, made of bare copper wires, has a 99 % optical coverage (instead of the usual 85 %).
Thus, the STAGE 22 is the ideal cable for stage, home recording, rental companies and ELA-100V-applications technicians. The STAGE 22 is a very affordable cable with no need to compromise.
Advantages:
- High transmission quality due to the usw of fine stranding
- Very rugged owing to the thick, soft PVC jacket
- Good shielding due to dence helical copper mesh screen
- High flexibility makes it easy to reel
- Affordable price
Application:
- Stage application
- Home recording
| Name | Stage 22 Highflex |
|---|---|
| Properties | OFC oxygen free copper |
| Properties | Analog |
| Application area | Installation |
| Application area | Mobile outdoor / indoor |
| Application area | Stage / live |
| Application | Microphone Cable |
| Colour | black |
| Colour detailed | black |
| Signal transmission | symmetrical |
| Construction | (2LI2Y0,22mm²)DY |
| Jacket material | PVC |
| Jacket Ø [mm] | 6,40 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 2 |
| Inner conductor (audio) [mm²] | 0,22 |
| Inner conductor Ø (audio) [mm] | 0,53 |
| AWG (audio) | 24 |
| Shielding | Copper spiral shielding with 0.10 mm indiv. strands |
| Copper strands (audio) | 28 |
| Copper strand Ø (audio) [mm] | 0,10 |
| Weight per 1 m [g] | 47 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,22 |
| Style variant | round |
| Shielding factor [%] | 99 |
| Packing | per meter |
| Packing | |
| Temperature min. [°C] | -20 |
| Temperature max. [°C] | 70 |
| Width [mm] | 6,4 |
| Height [mm] | 6,4 |
| Capac. cond./cond. per 1 m (audio) [pF] | 68 |
| Capacity wire/wire at 1 ft. (audio) [pF] | 20,7264 |
| Capac. cond./shield. per 1 m (audio) [pF] | 130 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] | 39,624 |
| Impedance [?] | 100 |
| Insulation resist. per 1 km [G?] | 1 |
| Insulation resist. per 1000 feet [G?] | 0,3048 |
| Insulation resist. per 1 km (audio) [G?] | 1 |
| Insulation resist. per 1000 feet (audio) [G?] | 0,3048 |
| Conductor resistance per 1 km [?] | 87 |
| Conductor resistance per 1000 ft. [?] | 26,5176 |
| Shield. resistance per 1 km [?] | 30 |
| Shield. resistance per 1000 ft. [?] | 9,144 |
| EAN | 4049371001830 |
