1/4 Shaft
Category
Manufacturer
Item no.
- 200-0350
Product weight
- 0,01 kg
Shipping weight
- 0,05 kg
Application
Interesting items
Description

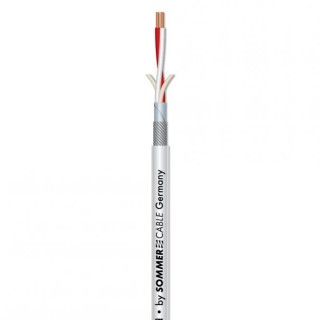

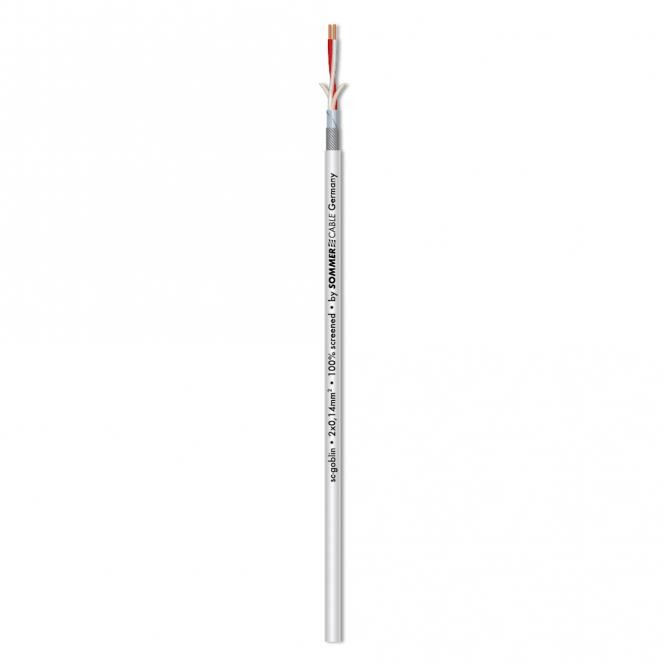

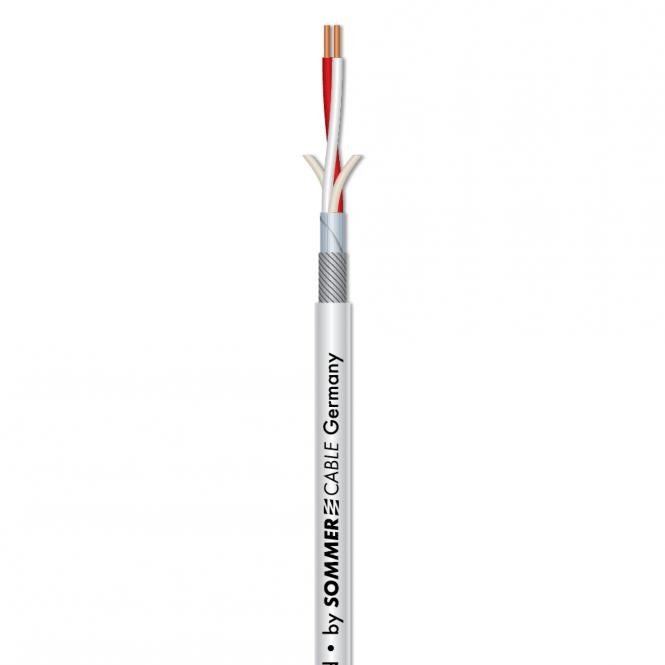

Patch- TT-Phone and Micrphone Cable with outstanding shielding and flexibility.
With its the small diameter cable it fits virtually all current TT-phone and B-gauge connectors and can also be used for Y-adapter cables. Due to its carefully designed shielding the cable offers the extra benefit of an amazing tread resistance and tensile strength. The white version is recommended for the unobtrusive installation in churches.
Advantages
- Ideal for patch cables owing to its small outside diameter of 4.6 mm
- Very good tensile strength due to the dual shielding construction and special
PVC jacket - Linear sound transmission due to the special-designed conductor pairs and the
copper litz wire stranding - 100 % shielding due to a metallised fleece plus additional
helical copper mesh screen
Application
- Professional studio patch connection
- High-quality mini microphone cable
- High-class phono and RCA connections
- Long-distance MIDI cabling
- Interior rack wiring and connection of audio components and effects devices
Specifications
|
Colour |
black |
|---|---|
|
Properties |
Analog |
|
Properties |
OFC oxygen free copper |
|
Application area |
Installation |
|
Application area |
Studio / Broadcast |
|
Colour detailed |
black |
|
Construction |
(2LI2Y0,14mm²)(ST)DY |
|
Construction (audio) |
(2LI2Y0,14mm²)(ST)DY |
|
Jacket material |
PVC |
|
Jacket material (audio) |
PVC |
|
Jacket Ø [mm] |
4,60 |
|
Jacket Ø (audio) [mm] |
4,60 |
|
Number of Channels (audio) |
1 |
|
Inner conductor (audio) |
2 |
|
Inner conductor (audio) [mm²] |
0,14 |
|
Inner conductor Ø (audio) [mm] |
0,42 |
|
AWG (audio) |
26 |
|
Shielding |
Copper spiral sleeve tin-plated + metalic fleece |
|
Shielding (audio) |
Copper spiral sleeve tin-plated + metalic fleece |
|
Copper strands (audio) |
18 |
|
Conductor insulation material |
PE |
|
Wire insulation material (audio) |
PE |
|
Signal transmission |
symmetrical |
|
Shielding factor [%] |
100 |
|
Packing |
100 m spool |
|
Style variant |
round |
|
Application |
Patch & Microphone Cable |
|
Copper strand Ø (audio) [mm] |
0,10 |
|
Conductor insulation Ø [mm] |
1,05 |
|
Conductor insulation Ø (audio) [mm] |
1,05 |
|
Width [mm] |
4,6 |
|
Height [mm] |
4,6 |
|
Temperature min. [°C] |
-25 |
|
Temperature max. [°C] |
70 |
|
Weight per 1 m [g] |
27 |
|
Fire load per m [kWh] |
0,1 |
|
UV-resistant |
yes |
|
Insulation resist. per 1 km [G?] |
0,2 |
|
Leakage resistance at 1 km (audio) [G?] |
0,2 |
|
Cond. resistance per 1 km [?] |
140 |
|
Conductor resistance at 1 km (audio) [?] |
140 |
|
Shield. resistance per 1 km [?] |
30 |
|
Capac. cond./cond. per 1 m (audio) [pF] |
65 |
|
Capac. cond./shield. per 1 m (audio) [pF] |
120 |
