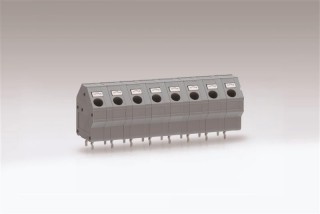

Screwless Terminal ML-880-S2L, 300V-10A

starting from 1,83 € per 1 Stk
(1,53 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 14 days
  • Minimum purchase: 20 Stk
Order Now
Please select

Category
Item no.
  • ML-880-S2L
Product weight
  • 0,01 kg

Description

Specifications:
Terminal model: PC terminal
Wire strip length: 11mm
Wire range: Solid : 0.4mm-1.6mm (AWG26, AWG14) Stranded : 0.3mm2-1.25mm2 (AWG22, AWG16)
Wire range Diameter: Diameter of each strand : 0.18mm min.
Suitable wire size for maximum rating:
Main insulator (housing): Nylon 66 (UL94V-0)
Number of poles:
Approvals: UL (approved for field wiring), CSA (need to request for CSA when ordering)
Dielectric strength: AC2000V (1 min)
Pitch: Pitch 7.5mm
Rating: 300V-10A-150V-15A
