SC-AQUA MARINEX BINARY 422 High Quality Data Bus Line; 4 x 0,22 mm2; PUR-SR 7,00 mm

Who can deal with pressure …

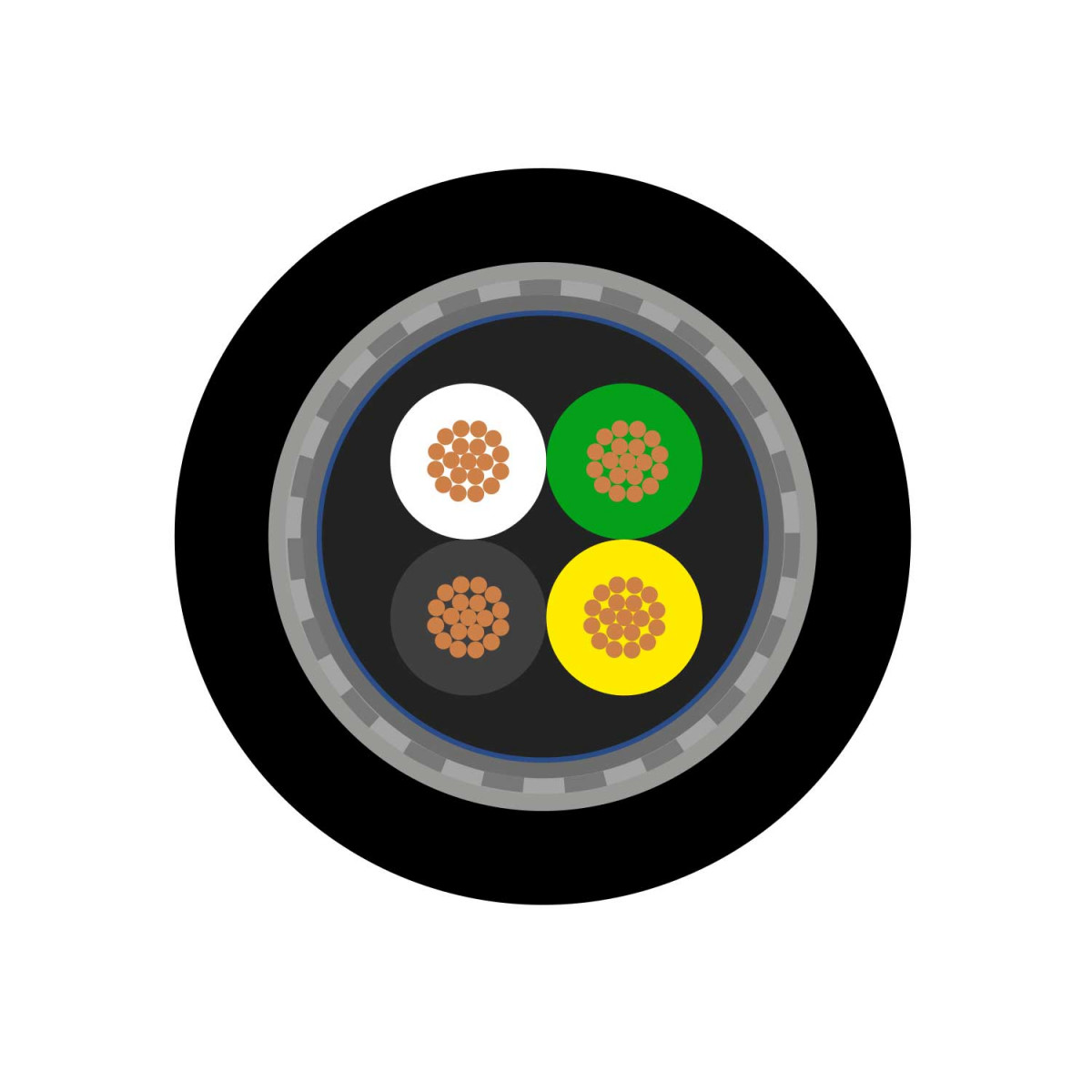

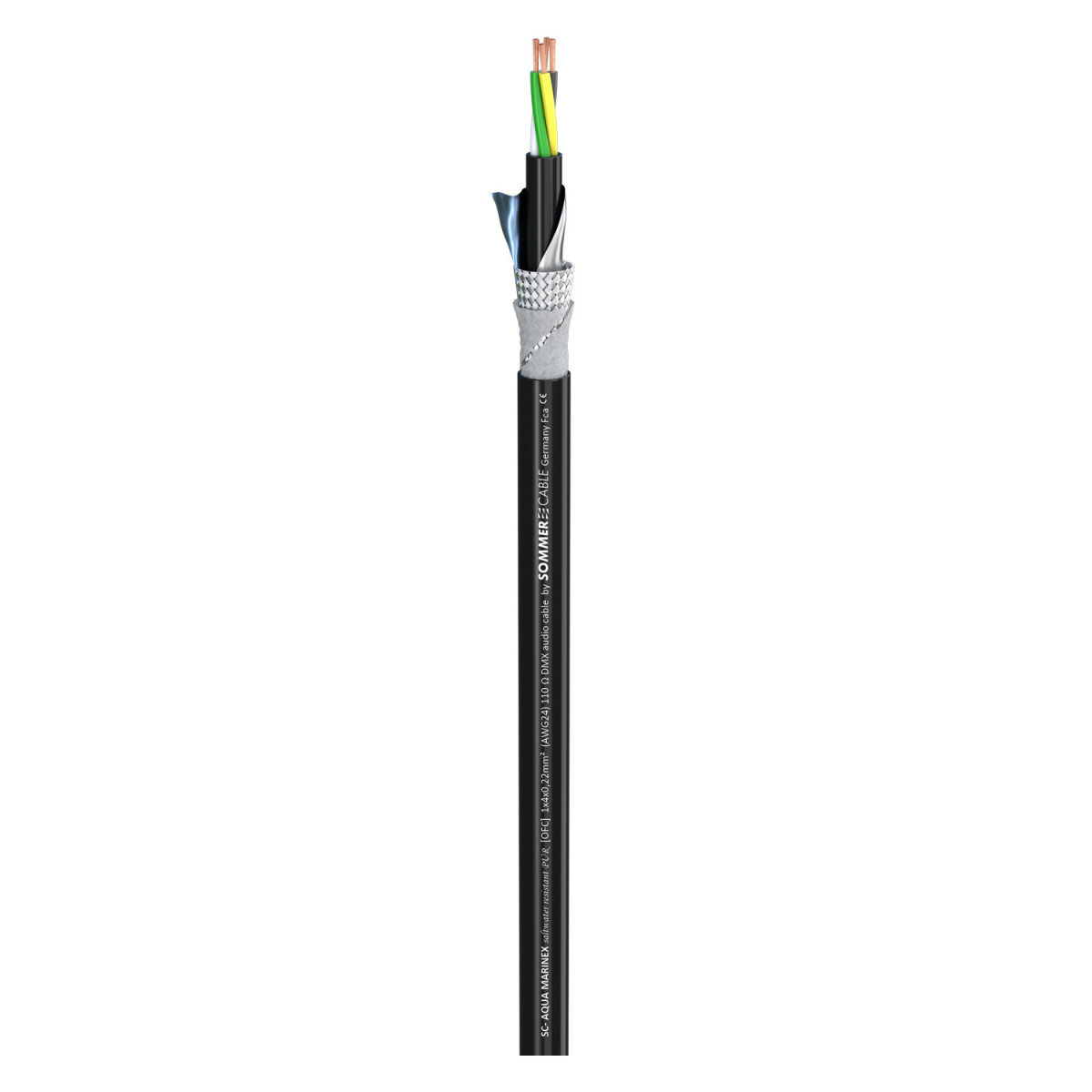

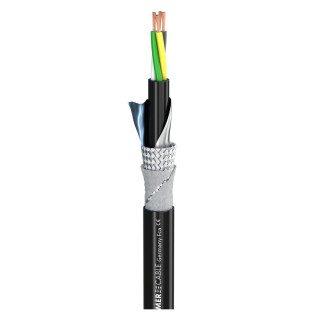

has a clear edge under water. The 4-wire SC-AQUA MARINEX BINARY 422 audio and DMX cable is the transversely watertight version of our legendary BINARY 434, optimized for the permanent installation under water and in outdoor areas. To make it withstand the high water pressure, the four wires are embedded in a hard PVC tube and the stranded wire pairs were fitted on top with an additional water-blocking tape to seal the cable interior in case of intruding water. The special SC-AQUA MARINEX PUR outer jacket is extremely robust, UV- and cold-resistant and also very easy to reel.
Due to the surge impedance of 110 ohms, the SC-AQUA MARINEX BINARY 422 is also an excellent choice as a high-quality data EIA-485/ RS-485 bus line.

Advantages:

• Fresh and salt water resistant outer jacket
• 4-wire, shielded for the DMX and BUS transmission
• 110 ohms surge impedance
• Transversely watertight with protective banding and pressure compensating tube
• Cold-flexible and reelable
• UV- and microbe-resistant

Application:

• Permanent laying in water depths of up to 50 m
• Installation in outdoor zones (e.g. in riding arenas or at longtime events)
• Utilization and installation near the coast or in boat building
• In- and outdoor installation in leisure parks and water oases
• RS-485 BUS cable in the industrial sector
• Digital control of visual effects
