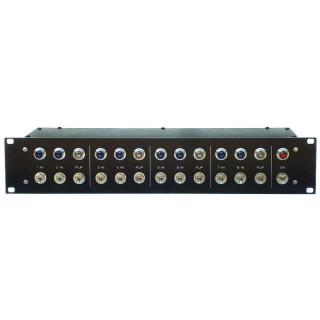

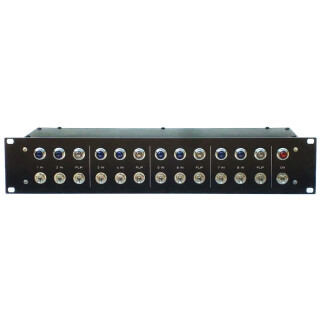

RJR SIS Stereo Insert Switcher

HIGHLIGHTS:

• 100% passive, no amplification circuits whatsoever
• Audio only travels through copper wire, copper traces, and switch contacts
• Extremely low noise floor; power supply only used for relay activation and indicator lighting
• Uses standard Tascam (AES/EBU) DB25 snakes
• Built by hand, one unit at a time, in the USA

SPECS:

• Balanced stereo audio path throughout
• Input XLR jacks connect directly to output XLR jacks when all inserts are "out"
• Eight stereo inserts, each switchable in or out (hard bypass)
• Flip function swaps position of neighboring inserts [(1,2) or (2,1)] ; [(3,4) or (4,3)] ; [(5,6) or (6,5)] ; [(7,8) or (8,7)]
• Each DB25 connector carries fully balanced stereo send and return connections for each pair of inserts
• Input AC: Please specify 110V-120V or 220-240V when ordering

?

MATERIALS:

• 4mm thick black anodize aluminum front panel with CNC engraving
• 2mm thick black anodize aluminum rear panel with CNC engraving
• All aluminum black Chassis
• Gold plated Neutrik XLR Jacks
• Heavy duty large toggle switches
• Jewel light indicators for power, inserts, and flip
• High quality Omron relays
