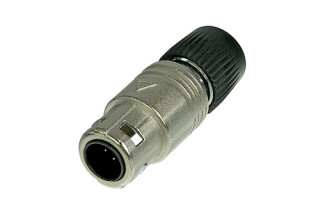

Neutrik OSC8M-NI neutriCON Connector
Description
8 pole male cable connector, chuck type strain relief, solder contacts, 180° coding, nickel housing
The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.
Features & Benefits
- Contact configuration can be selected from 1 to 8 contacts.
- Easy assembly: Contact soldering in disassembled condition avoids awkward wiring of high density contacts.
- Precise and robust all metal housing
- Push-pull self-locking system
Product
Title
OSC8M-NI
Connection Type
neutriCON
Gender
male
Electrical
Contact resistance
? 5 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 0.5 G? (after damp heat test IEC 68-2-30)
Rated current per contact
7,5 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3 - 7 mm
Cable retention
> 50 N
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Wiresize
1 mm²
Wiresize
18 AWG
Wiring
Solder contacts
Locking device
Push-Pull
Material
Contact plating
0.3 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
PBTP 15 % GR
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Protection class
IP 5X
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
