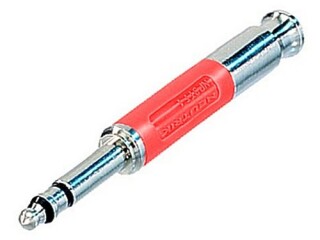

Neutrik NP3TT-1-R Plug 0.173'' Bantam Type Miniature Plug
Description
4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T+ R, crimp termination for S, HEX crimp cable strain relief, red plastic housing, nickel contacts. Ideal use with TT patch panels.
Features & Benefits
- Designed for pro audio applications
- Robust egonomic design - long-lasting and depenable
- Standard HEX crimp cable clamp for shield termination and cable retention
- Colored sleeves available for coding and marking
Product
Title
NP3TT-1-R
Connection Type
Plug
Gender
male
Electrical
Contact resistance
depends on mating connector m?
Dielectric strength
1 kVdc
Insulation resistance
> 2 G? (initial)
Rated current per contact
depends on mating connector A
Rated voltage
< 50 V
Mechanical
Cable O.D.
4 - 4.8 mm
Crimp size
5 Hex crimp (shield)
Lifetime
> 1000 mating cycles
Wiresize
0,25 mm²
Wiresize
24 AWG
Wiring
Solder contacts
Material
Contact plating
2 µm Ni (Su)
Contacts
Bronze (CuSn6) (Tip)
Shell
Brass (CuZn39Pb3) + PA 6 30 % GR (red)
Shell plating
2 µm Ni (Su)
Insulation
Polyamide (PA 6.6 30 % GR)
Environmental
Standard compliance
MIL-P-642/13
Solderability
Complies with IEC 68-2-20
Temperature range
-20 °C to +65 °C
