Neutrik NP3TB-R Plug MIL/B-Gauge Type

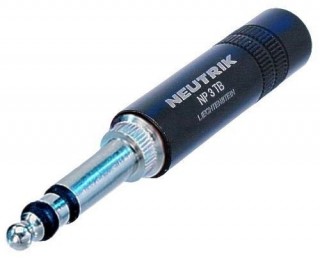

Neutrik NP3TB-B Plug MIL/B-Gauge Type
Description
1/4" 'B-Gauge' plug (BPO 316), black metal housing, nickel contacts
Professional phone plug according B-Gauge standard BPO316. Featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel. These plugs are not compatible with standard 1/4" jacks (acc. EIA RS453) and patch panels.
Features & Benefits
- 1/4" B-Gauge and MIL type plugs
- One-piece Tip conductor ensures secure conductivity
- Metal shell and chuck type cable retention - robust and dependable
Product
Title
NP3TB-B
Connection Type
Plug
Gender
male
Electrical
Contact resistance
depends on mating connector m?
Dielectric strength
1 kVdc
Insulation resistance
> 2 G? (initial)
Rated current per contact
depends on mating connector A
Rated voltage
< 50 V
Mechanical
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wiresize
1 mm²
Wiresize
18 AWG
Wiring
Solder contacts
Material
Bushing
Polyacetal (POM) + PU
Contact plating
2 µm Ni (Su)
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Brass (CuZn39Pb3)
Shell plating
Black
Strain relief
Polyacetal (POM)
Environmental
Standard compliance
B-Gauge BPO316
Solderability
Complies with IEC 68-2-20
Temperature range
-20 °C to +65 °C
