Neutrik NP3XL Professional 1/4'' Plug jumboPLUG

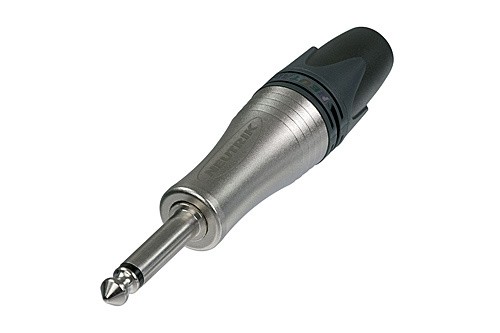

Neutrik NP2XL Professional 1/4'' Plug jumboPLUG
Description
2 pole 1/4'' professional phone plug, up to 10 mm cable O.D.
The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits
of the standard PX range.
Features & Benefits
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Ergonomic design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
Product
Title
NP2XL
Electrical
Contact resistance
? m? depends on mating connector
Dielectric strength
1 kVdc
Insulation resistance
> 2 G? (initial), ? 1 G? (after damp heat test)
Rated current per contact
? A depends on mating connector
Rated voltage
< 50 V
Mechanical
Cable O.D.
? 10 mm
Lifetime
> 1000 mating cycles
Wiresize
1 mm²
Wiresize
18 AWG
Environmental
Standard compliance
IEC 60603-11 / EIA RS-453
Temperature range
-20 °C to +65 °C
