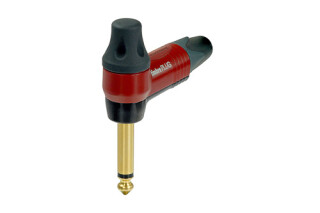

Neutrik NP2RX-TIMBRE Right angle 1/4'' 2 pole timbre plug
Category
Manufacturer
Item no.
- DON-NP2RX-TIMBRE
Shipping weight
- 0,10 kg
Series
Pins
Description
Right angle 1/4'' 2 pole timbre plug
The characteristic sound of a guitar is influenced to a certain extend by the used instrument cable. Particularly the natural electrical property of guitar cables cause the characteristic cable tone. Neutrik’s new timbrePLUG provides the possibility to change the timbre of your guitar sound from neutral, clear sound to warm characteristics in 4 steps by turning a knob on the plug. A wide range of new sounds opens.
As brilliant as simple.
Features & Benefits
- Standard timbre of the cable plus three additional sound characteristics
- Slim right-anlge plug with industry proven and reliable chuck type strain relief
- Sleek attractive design for convenient handling
- Gold plug finger, precision machined one piece contacts
timbrePLUG sound characteristics
Shipping: July 2011
Neutrik timbrePLUG audio test
Product
Title
NP2RX-TIMBRE
Electrical
Contact resistance
- m? (inner) depends on mating connector
Dielectric strength
1 kVdc
Insulation resistance
> 2 G? (initial), ? 1 G? (after damp heat test)
Rated current per contact
- A depends on mating connector
Mechanical
Cable O.D.
4 - 7 mm
Lifetime
1000 mating cycles
Wiresize
1 mm²
Wiresize
18 AWG
Material
Insulation
Polyamide (PA 6.6 30% GR)
Environmental
Temperature range
-20°C to +65 °C
