Neutrik NO4FDW-A opticalCON QUAD Chassis Connector
Item no.
- NO4FDW-A-DON
Product weight
- 0,00 kg
Shipping weight
- 0,10 kg
Shell
Interesting items
Description

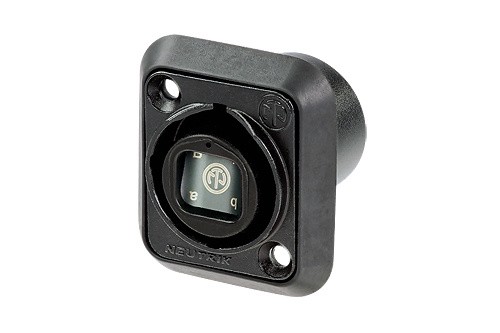

Chassis connector, black chromium plating, waterproof acc. to IP65, front panel mount.
The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection. Colored sealings are included to identify the fiber mode.
Features & Benefits
- Rugged 4-channel Point-to-Point multichannel routing solution
- Laser protected metal shutter seals dust proof with two-component rubber gasket
- Water resistant according to IP65 (mated), rubber sealing gasket
- Accommodates standard LC connectors on the rear for cost effective and simple installations
- Color coding to identify fiber mode:
Multi mode ? black
Single mode PC ? blue
Single mode APC ? green
Product
Title
NO4FDW-A
Gender
female
Mechanical
Insertion force
< 45 N
Withdrawal force
< 45 N
Lifetime
> 5000 mating cycles
Locking device
Push-Pull
Mounting direction
Front mounting
Chassis shape
D
Material
Insert
Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Flammability
UL 94 HB
Protection class
IP 65
Temperature range
-40 °C to +75 °C
Optical
Insertion loss
< 0.5 dB / connection
