The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

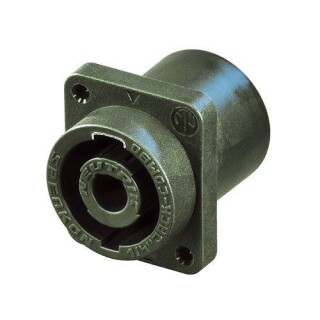

First speakON / jack hybrid panel mount connector combining the speakON chassis connector with a 1/4" 2 pole jack socket permitting connection using either type of plug. The speakON Combo mates with all 2- and 4-pole speakON cable connectors and 1/4" jack plugs utilizing 2 contacts.
Features & Benefits
- Combined speakON D size receptacle and 1/4" jack
- Save rack space and costs by combining 2 connectors in one housing
- Mates with two types of connectors offering greater flexibility of interconnections
- Rear panel mount
- PA-wiring: 1+ is connected to Tip, 1- to Sleeve
Product
Electrical
Contact resistance
? 3 m? (inner) (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 G? (after dampheat)
Rated current per contact
15 A rms continuous (Speakon)
Rated current per contact
20 A audiosignal, duty cycle 50 % (Speakon)
Rated voltage
250 V (Insulation)
Dielectric strength 1/4' Jack
1.5 kV dc
Rated current per contact 1/4' Jack
15 A
Mechanical
Lifetime
> 5000 mating cycles
Wiring
vertical PCB mount
Locking device
Quick Lock
Layout
standard hole position, self tapping screw holes (A-Screw)
Material
Shell
Polyamide (PA 6 30 % GR) green
Environmental
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
Attention
speakON is NOT to be used as an AC mains or power supply connector!
